MAMBA MK4 H743 V2 Flight Control 30mm/M3


Price:
Sale price$79.99

Description

Notice:
Since Betaflight is open source software, self-flashing the firmware will likely result in an unstable working product.
For your safety, the propeller must be removed for the Betaflight setup.



If you try INAV's firmware, you need to add the control of USER2 in the AUX list (INAV needs to set the remote switch to control the opening and closing of WIFI due to official restrictions)

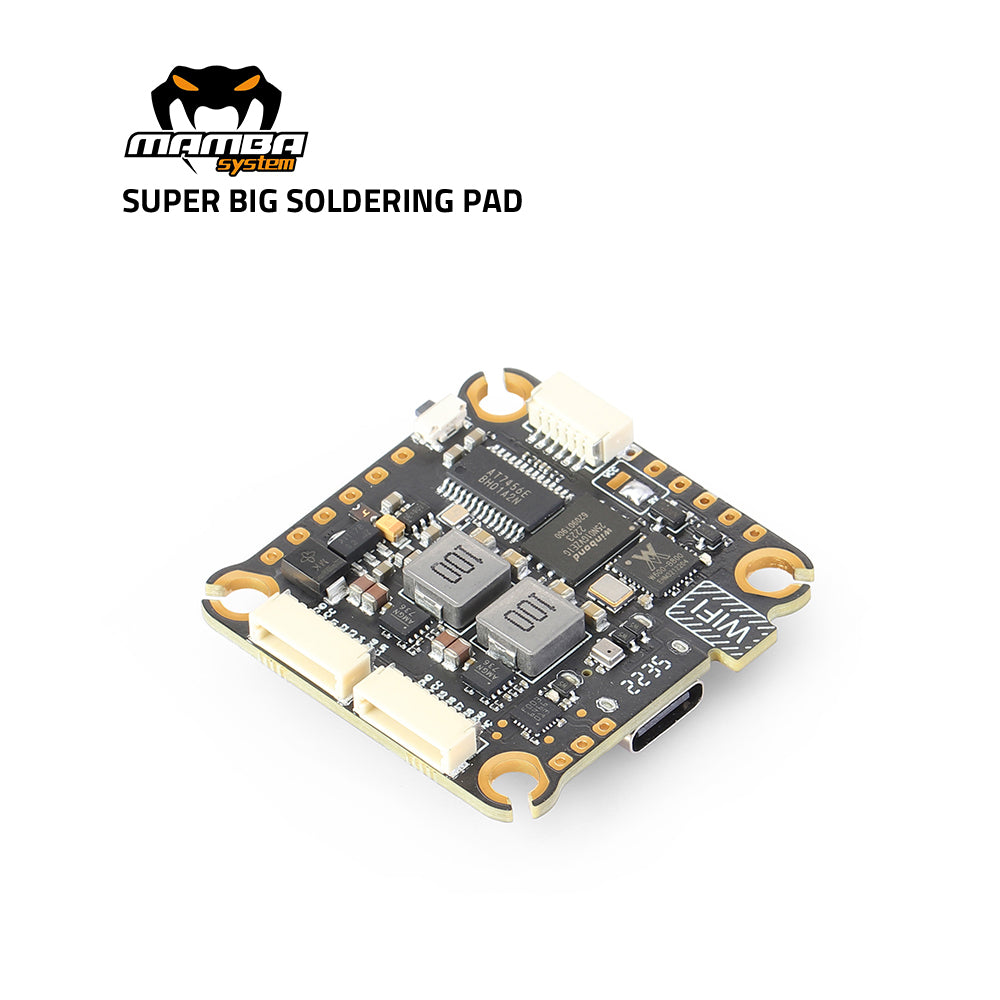

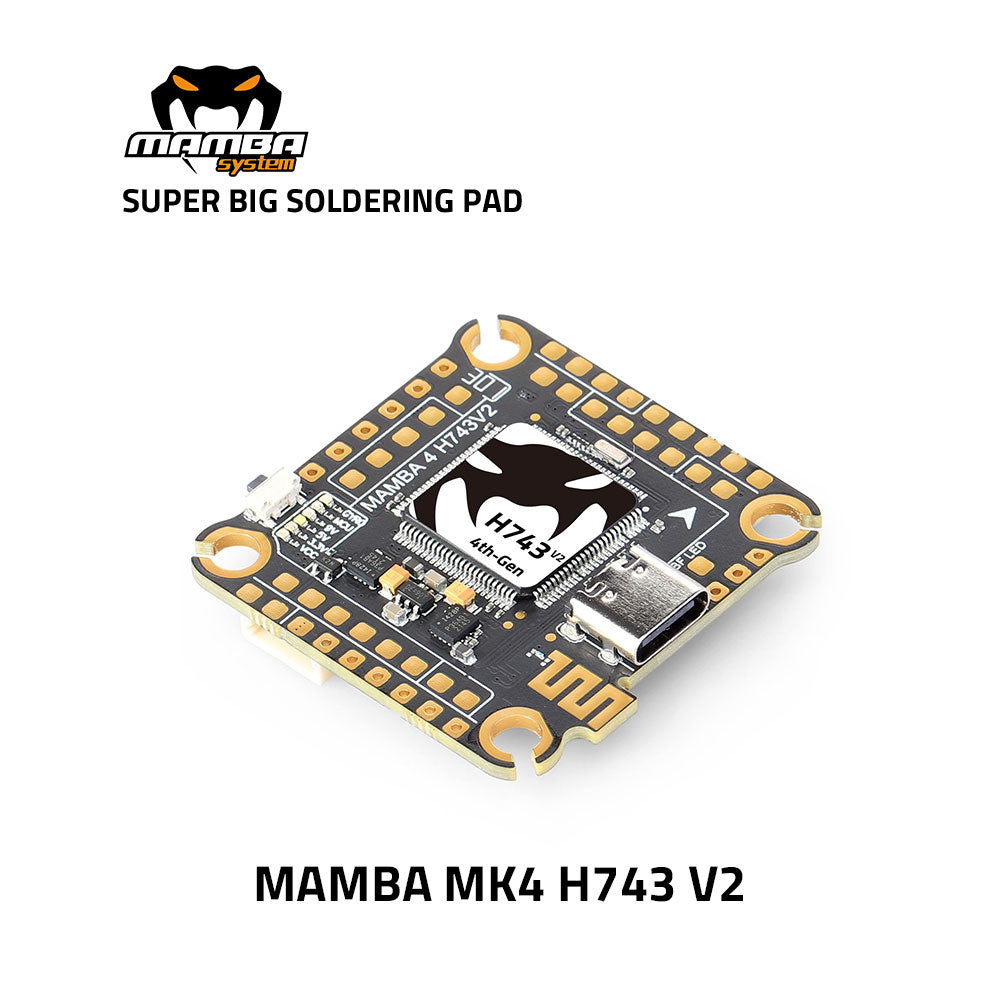

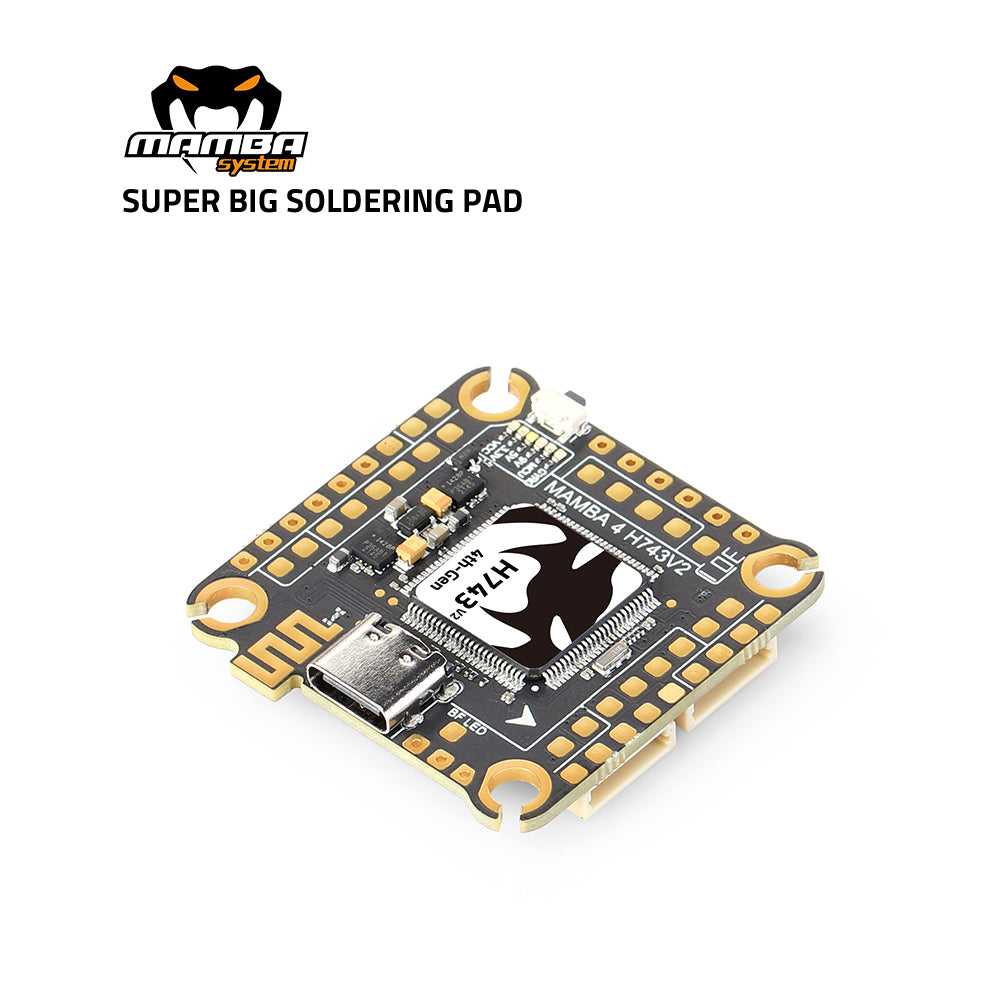

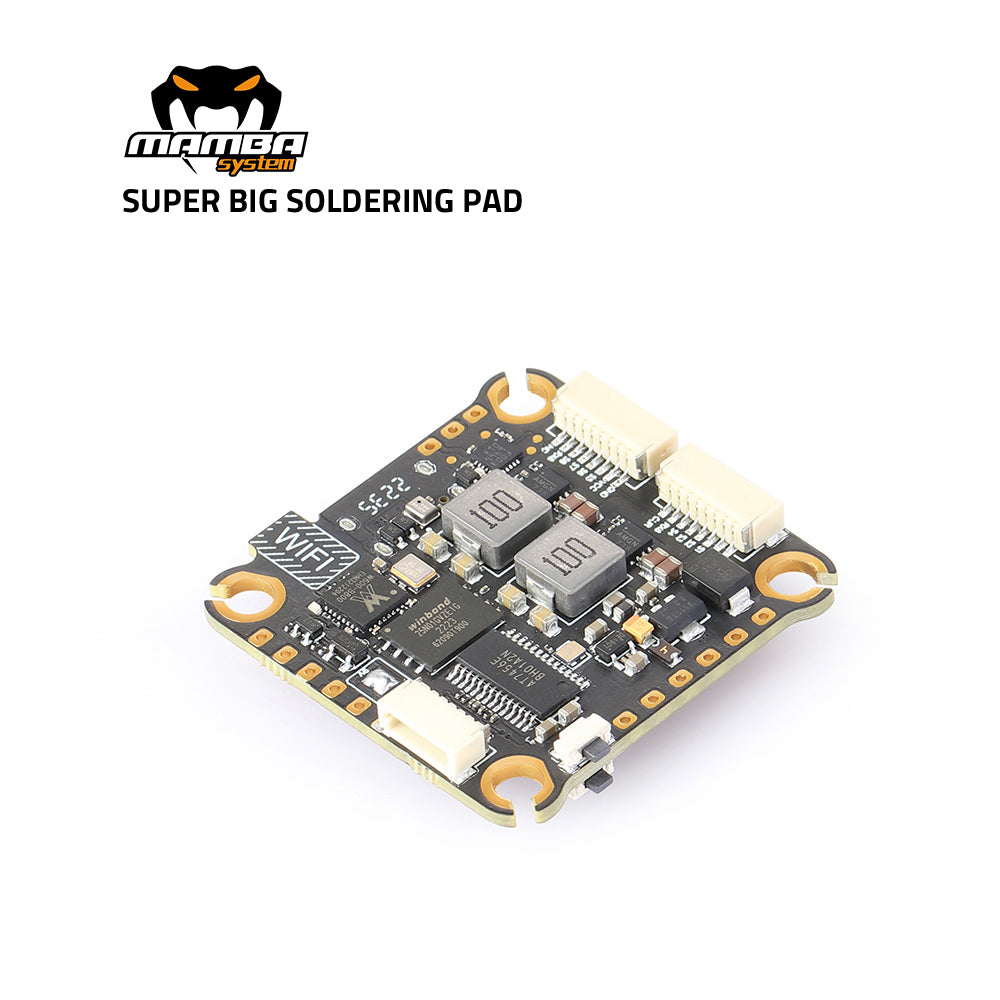

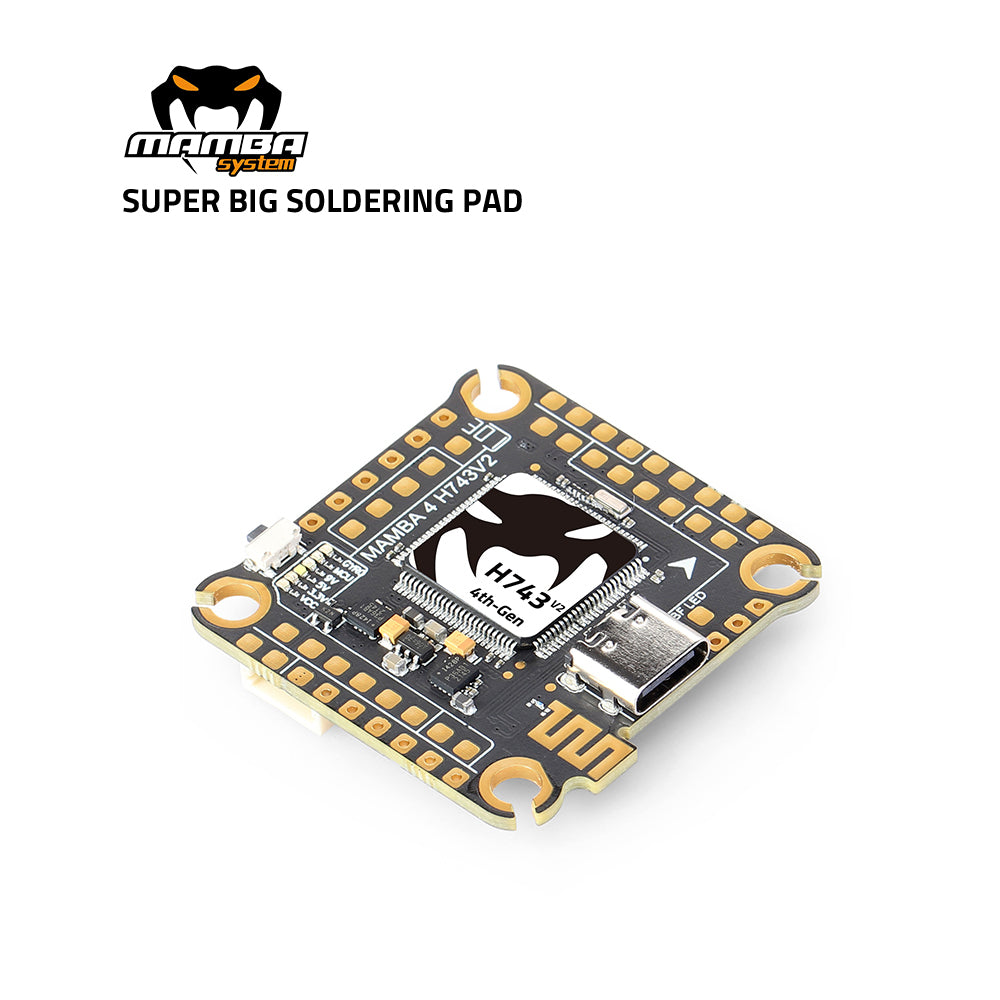

MAMBA MK4 H743 V2 Flight Control 30mm/M3

MCU: 480MHz STM32H743
GYRO: DUAL ICM-42688-P
Target:MAMBA H743_2022B
OSD: Yes
Blackbox: 128M Flash Memory
Barometer: SPL06
Uarts: 8Set
I2C: Yes
F.Port: Yes
RSSI: No
Buzzer Pad: Yes
CURR Pad: Yes
ESC Signal: 8 Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: Yes
Power Led: Yes
LED Controller:BF LED/MB LED

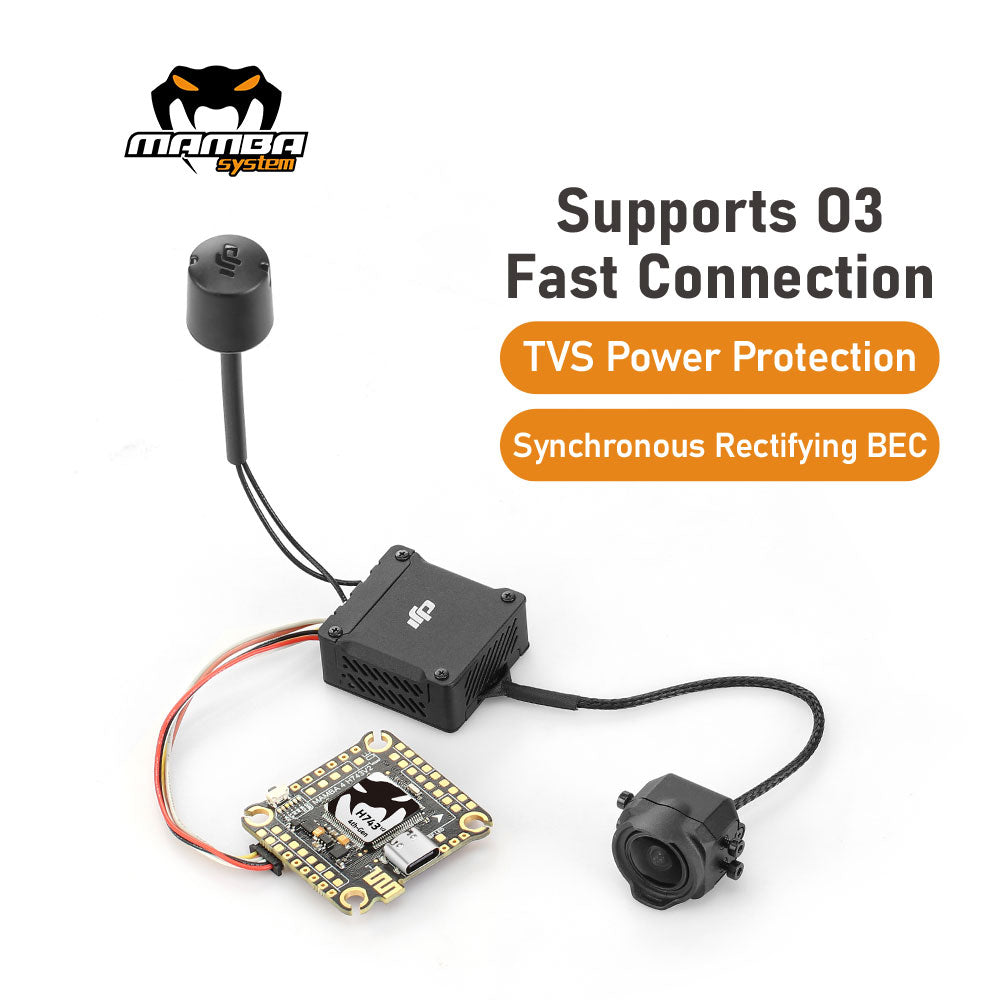

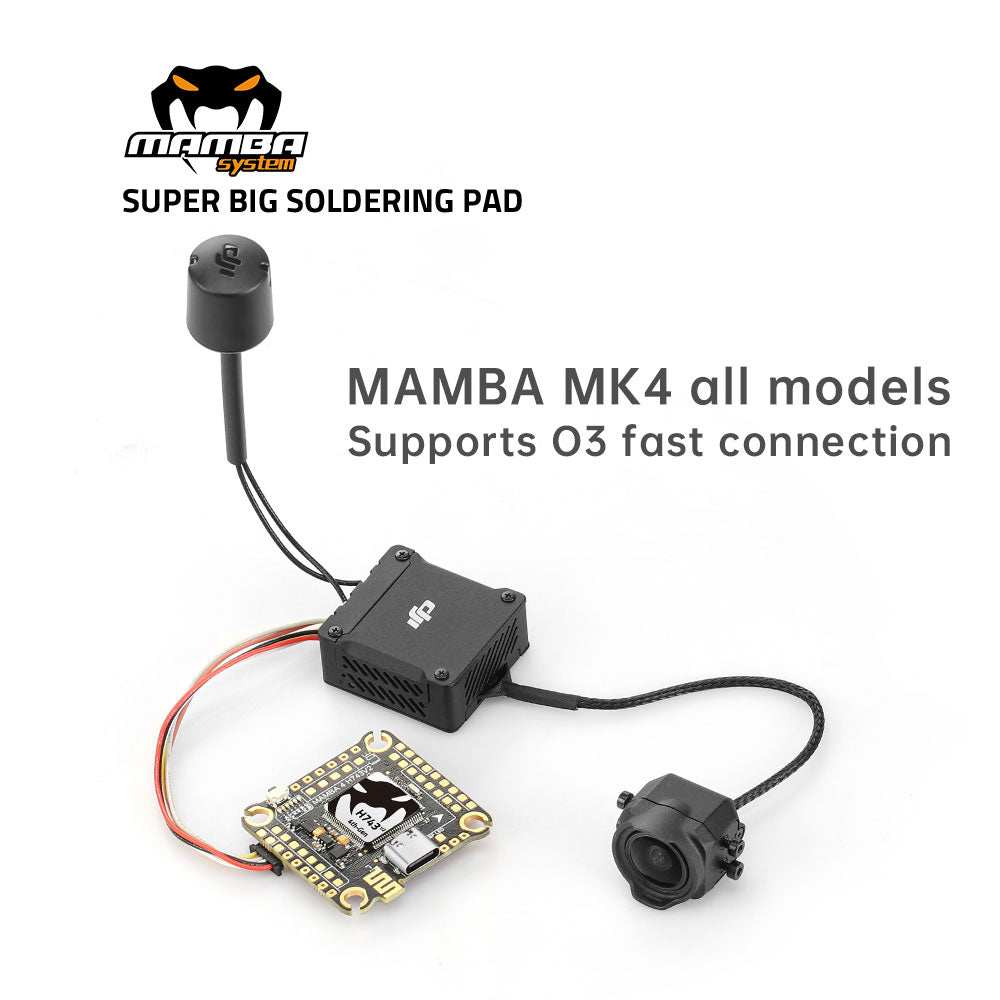

AIR UNIT Port: Yes
WIFI: SpeedyBee APP
VTX Switch: Yes
Receiver Protection: Yes
TVS Protection: Yes
BEC:3.3V 0.5A& 5V 3A& 9V 3A
Input: 3~6S Lipo (12.6~25.2V)
Mounting size: 30.5mm/M3


Supply :
8pin sh1.0 ×1
AIR UNIT sh1.0 ×1

H743V2

H743V2
