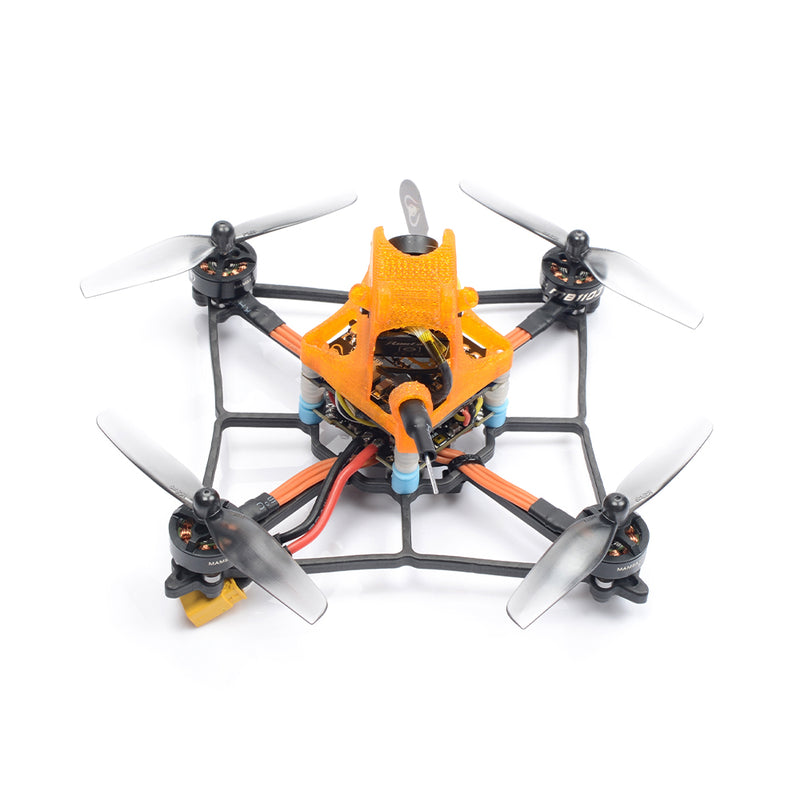

GTB 339 (5500KV) Cube PRO Runcam HD Version-TBS NANO VTX


Size: GTB HD 339 5500KV
Price:
Sale price$199.99

Description

DIATONE CUBE GTB 229/339 PRO AIO Board

Universal Receiver plug port Standard -  Frsky R-XSR JST1.25,XM+

1.Mamba F411 AIO Stack Diagram


Specification:
Brand name: Diatone
Item name: DIATONE GTB 229  339  HD PRO AIO

Weight about :60g -68 g

Caution:

2S - Triblades             GF 3016 Fine
3S - Bi-Blades            HQ props Fine


FC Specifications
MCU:  MAMBA F411 NANO   AIO
MAMBA F411AIO
-STM32F411
-Input voltage 2-4S Lipo
-Gyro: MPU6000
-2x UART ports
-OSD inbuilt
-BEC 5V 1.5 A
-Size:28.5*28.5mm
-Mounting holes: 25.5*25.5mm M2
-Weight: 6.1g
-BF target : Mamba F411

-Input voltage : 2-4S LIPO
CONTINUE CURRENT: 13A×4



Camera:  RUNCAM SPLIT3 NANO25.5

Antenna: Copper pipe antenna

VTX: TBS UNIFY PRO32 NANO

Motor: MAMBA Racing MB1103  1105

Lipo:

2S version 300-450mah

3S  version 300-450mah


CUBE 229 Bottom Thickness:3 mm  1103 8500KV 2S  -HQ T65mm

CUBE 339 Bottom Thickness:4 mm 1105 5500KV 2S   -Gemfan 3016 Tri Props



ESC Specifications
INPUT VOLTAGE:2~4S Lipo (8.4~16.7V)
CONTINUE CURRENT: 13 A×4
BEC: NO SOFT: Dshot600
MOUNTING: 20mm/M2

FC Firmware
BetaFlight
Target: MAMBA F411 (uploading.....)  Download
