MAMBA TOKA 2203.5 1650KV/2200KV/2650KV/3300KV/4200KV Racing Motor Green


Version: 2203.5 1650kv motor
Size: 1PCS
Price:
Sale price$19.99

Description

Specification:

MAMBA TOKA 2203.5 1650KV Racing Motor Green

Overall Dimension:Φ28.9×29.4mm
prop mounting shaft diameter:5mm
Installation hole position:16×16mmM3
Prop:  5inch
Bearing9*4*4
Shaft Diameter:4.0mm
Lead Wire Size24AWG×190mm
slots/poles:12N14P
Magnet Wire: 240 Enameled Wire
Stator Diamter22mm
Stator Height:3.5mm
Rated Voltage:4~6S (16.8V~25.2V)
Peak Current: 15.59A
ldle Current10V/0.3~1.0A
Maximum Power: 380.8W
Internal Resistance:232mΩ

2203.5 1650KV Motor Table

MAMBA TOKA 2203.5 2650KV Racing Motor Green

Overall Dimension:Φ28.9×29.4mm
prop mounting shaft diameter:5mm
Installation hole position:16×16mmM3
Prop:  5inch
Bearing9*4*4
Shaft Diameter:4.0mm
Lead Wire Size24AWG×190mm
slots/poles:12N14P
Magnet Wire: 240 Enameled Wire
Stator Diamter22mm
Stator Height:3.5mm
Pated Voltage:3~4S (12.6V~16.8V)
Peak Current: 27.64A
ldle Current10V/0.9~1.9A
Maximum Power: 441.24W
Internal Resistance120mΩ

2203.5 2650 motor table

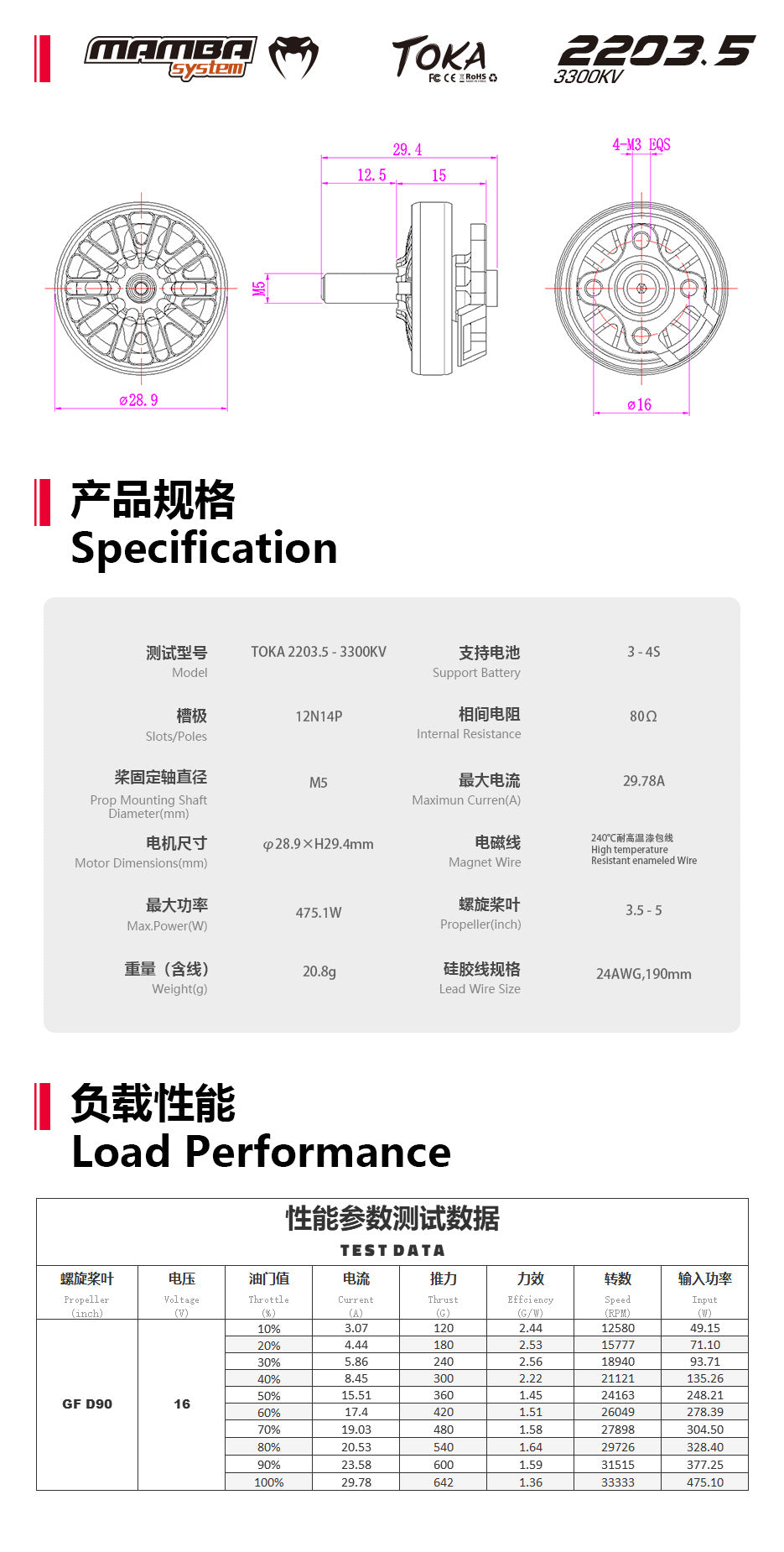

Mamba Toka 2203.5 3300KV Racing Motor Green

Overall Dimension:Φ28.9×29.4mm
Prop mounting shaft diameter:5mm
Installation hole position:16×16mmM3
Prop:  3.5inch
Bearing9*4*4
Shaft Diameter:4.0mm
Lead Wire Size24AWG×190mm
slots/poles:12N14P
Magnet Wire: 240 Enameled Wire
Stator Diamter22mm
Stator Height:3.5mm
Rated Voltage:3~4S (12.6V~16.8V)
Peak Current: 29.78A
ldle Current:10V/1.5~2.2A
Maximum Power: 475.1W
Internal Resistance:80mΩ



MAMBA TOKA 2203.5 2200KV Motor

Overall Dimension:Φ28.9×29.4mm
prop mounting shaft diameter:5mm
Installation hole position:16×16mm,M3
Prop: 4 inch
Bearing:9*4*4
Shaft Diameter:4.0mm
Lead Wire Size:24AWG×190mm
slots/poles:12N14P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter:22mm
Stator Height:3.5mm
Rated Voltage:4~6S (16.8V~25.2V)
Peak Current:19.43A
ldle Current:1.0A
Maximum Power: 466.5W
Internal Resistance:160mΩ



Mamba Toka 2203.5 4200KV Motor

Overall Dimension:Φ28.9×29.4mm
prop mounting shaft diameter:5mm
Installation hole position:16×16mm,M3
Prop: 3.5inch
Bearing:9*4*4
Shaft Diameter:4.0mm
Lead Wire Size:24AWG×190mm
slots/poles:12N14P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter:22mm
Stator Height:3.5mm
Rated Voltage:3~4S (12.6V~16.8V)
Peak Current: 35.21A
ldle Current:2.2A
Maximum Power: 567.23W
Internal Resistance:65mΩ
