DIATONE MXC Taycan Cinewhoop FPV Accessories

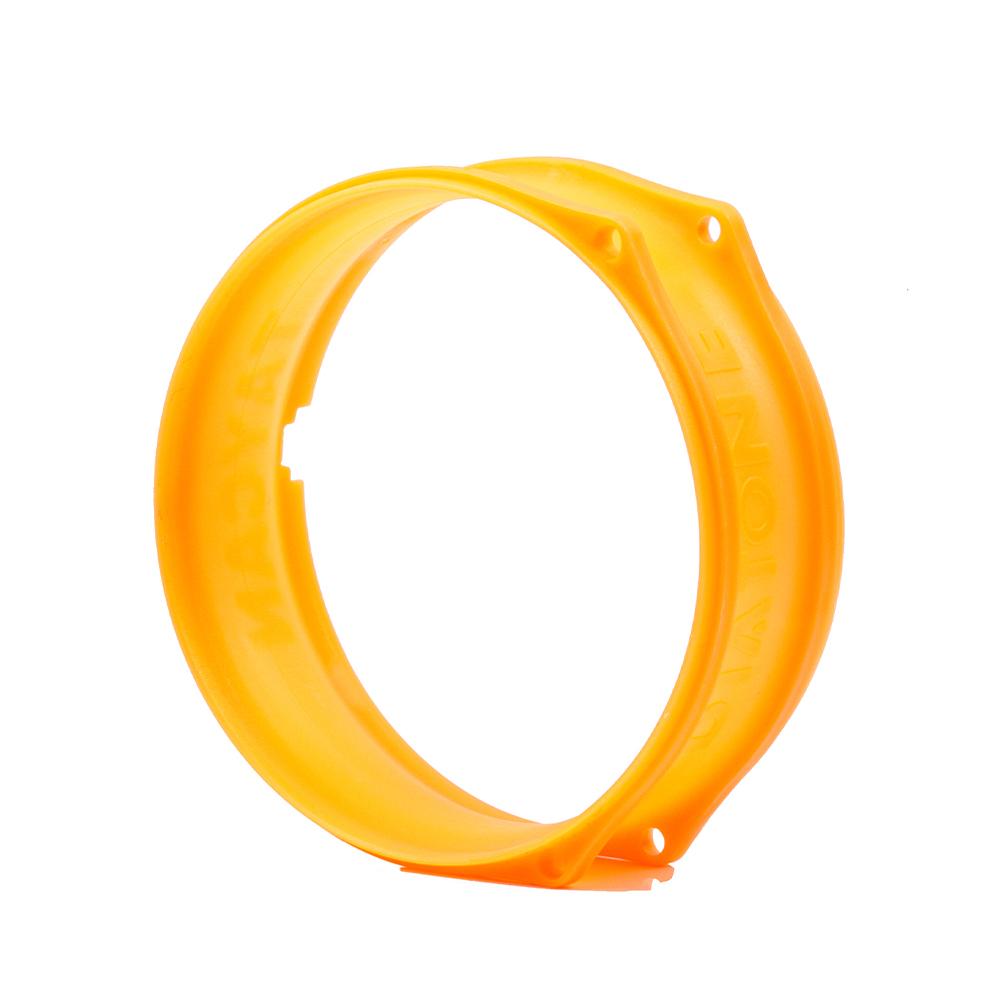

Type: MX-C frame guard ring orange
Price:
Sale price$1.99

Description

SKU DT-FK19-MXC3-PLA-O
Name MX-C frame Guard ring Orange-DUCT
Product Size 85.4*29.5mm
Weight 15 g
Description The Composite Polypropylene and Injection Model Duct
Protect the motor
Guard ring *1PCS
SKU DT-FK19-MXC3-AM

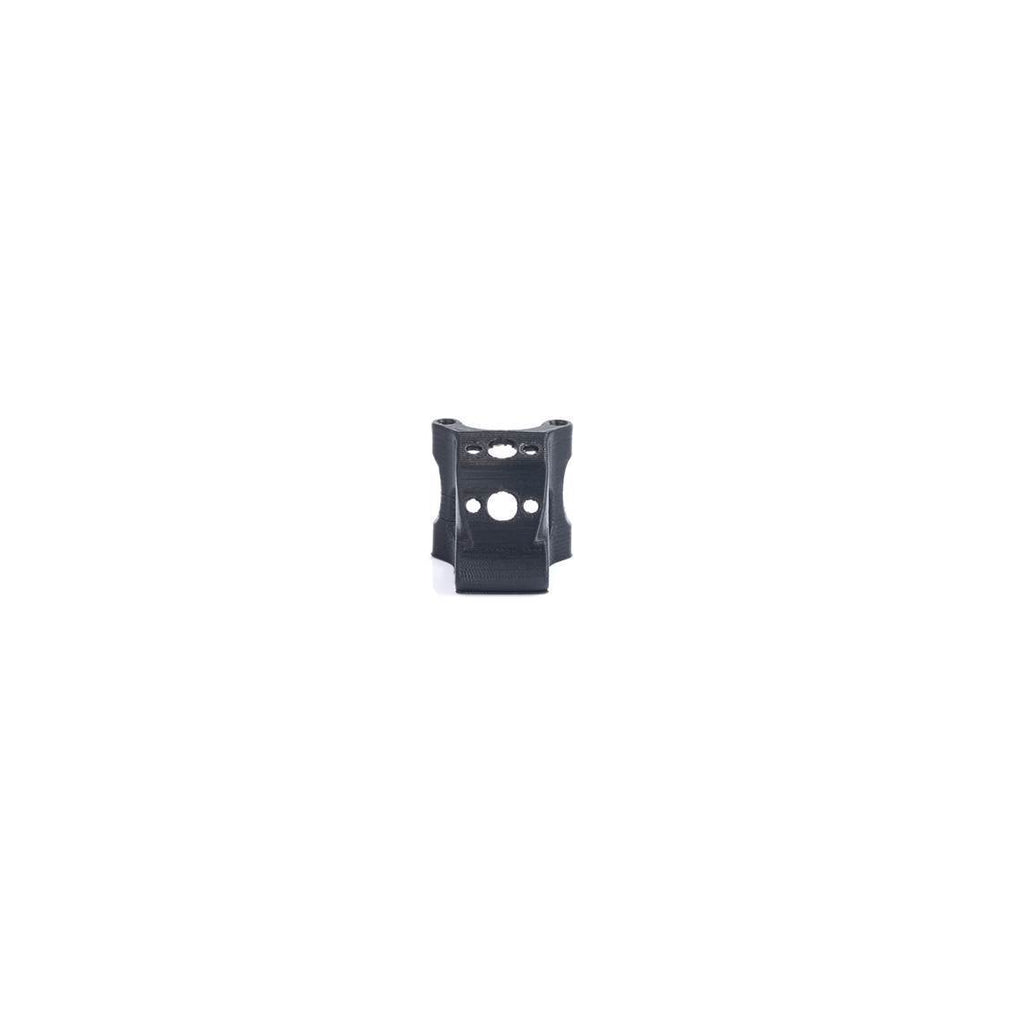

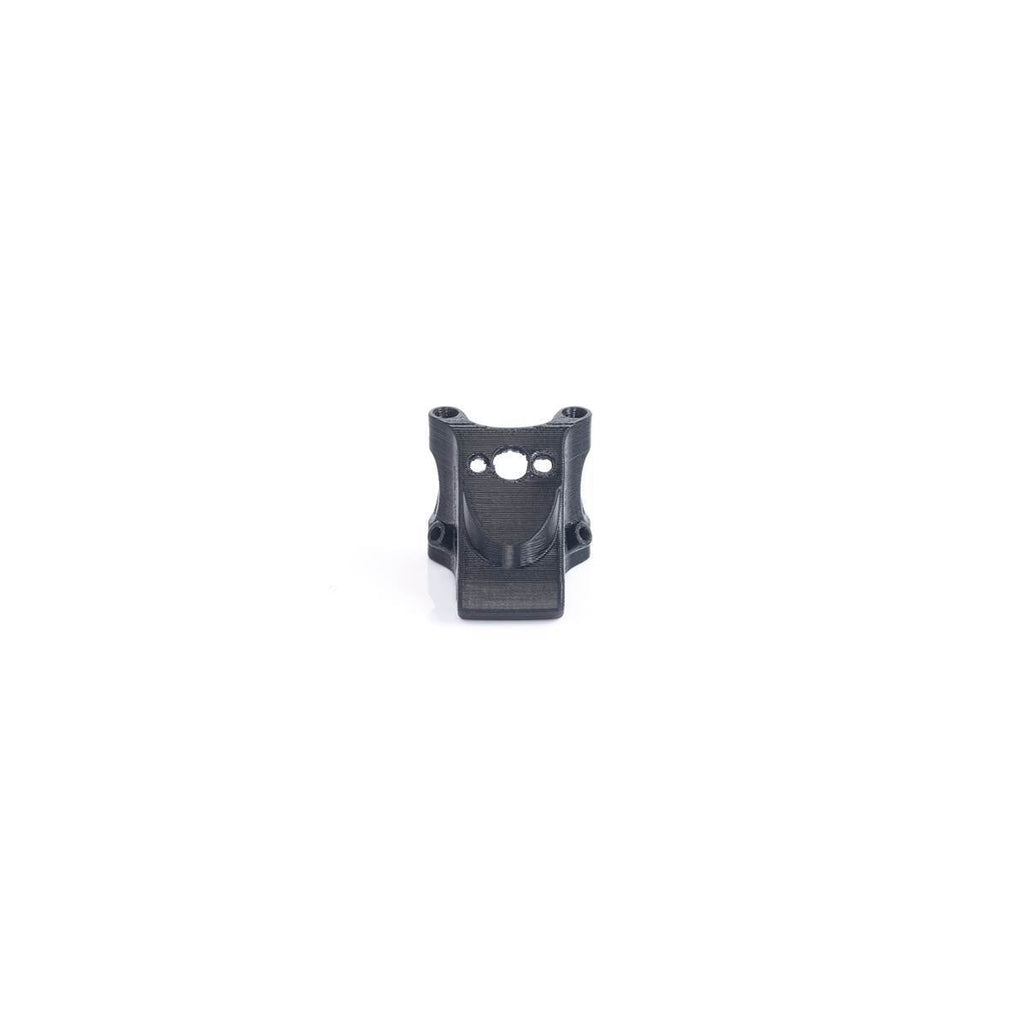

Name MX-C  Antenna Mounting
Product Size 32.5*28*30mm
Weight 5.5g
Description Black TPU
Adaptive SMA antenna mounting/a variety of receiver antenna mounting/T-type antenna
Antenna mounting* 1 pcs
SKU DT-FK19-MXC3-FSL-A75
Name MX-C Camera Mount  left
Product Size 34.8*24.8*6mm
Weight 2.7g
Description 7075 aviation grade aluminum alloy
Protect and support the camera
Camera Mount  left*1 pcs
SKU DT-FK19-MXC3-FSR-A75
Name MX-C Camera Mount  Right
Product Size 34.8*24.8*6mm
Weight 2.7g
Description 7075 aviation grade aluminum alloy
Protect and support the camera
Camera Mount right *1 pcs

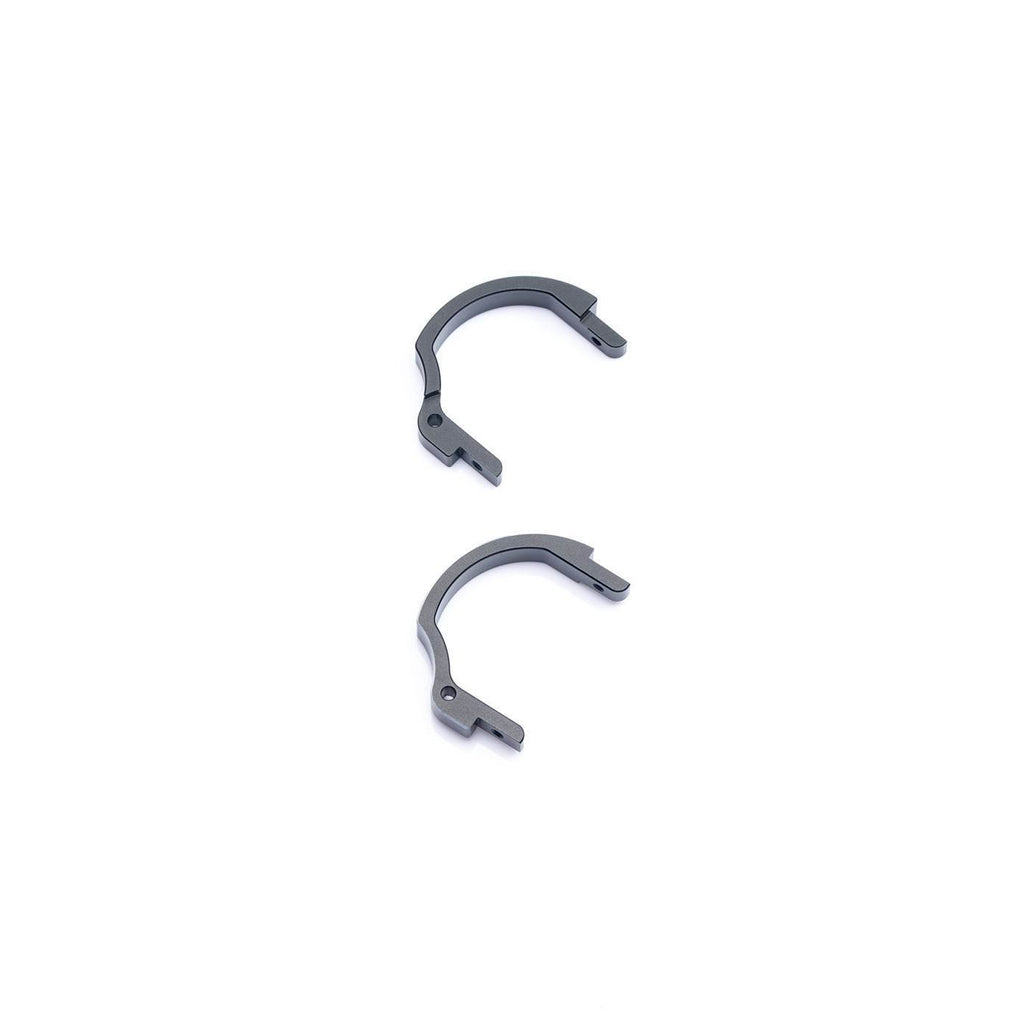

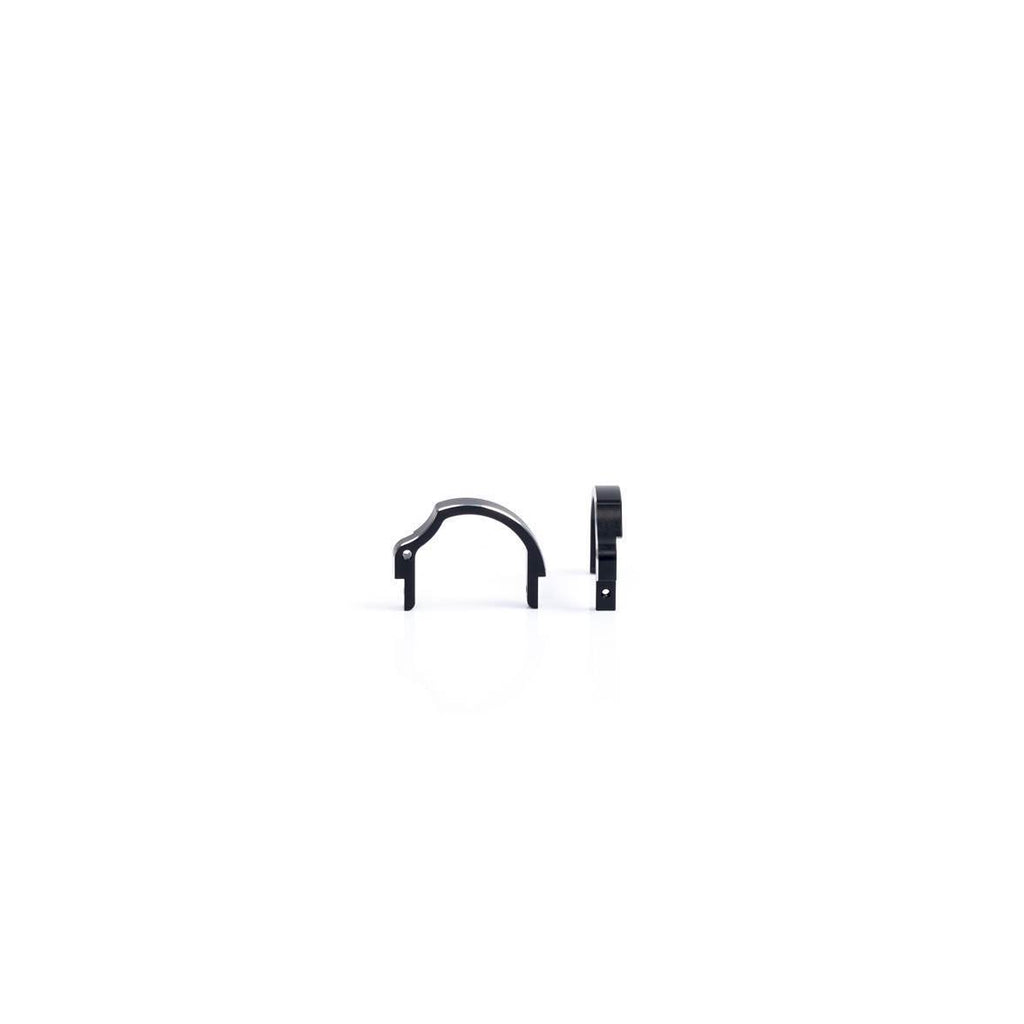

SKU DT-FK19-MXC3-ASS
Name MX-C Camera Mount Assembly
Product Size 34.8*24.8*6mm
Weight 5.4g
Description 7075 aviation-grade aluminum alloy
Protect and support the camera
Camera Mount Assembly *1 set
SKU DT-FK19-MXC3-AM-DJI

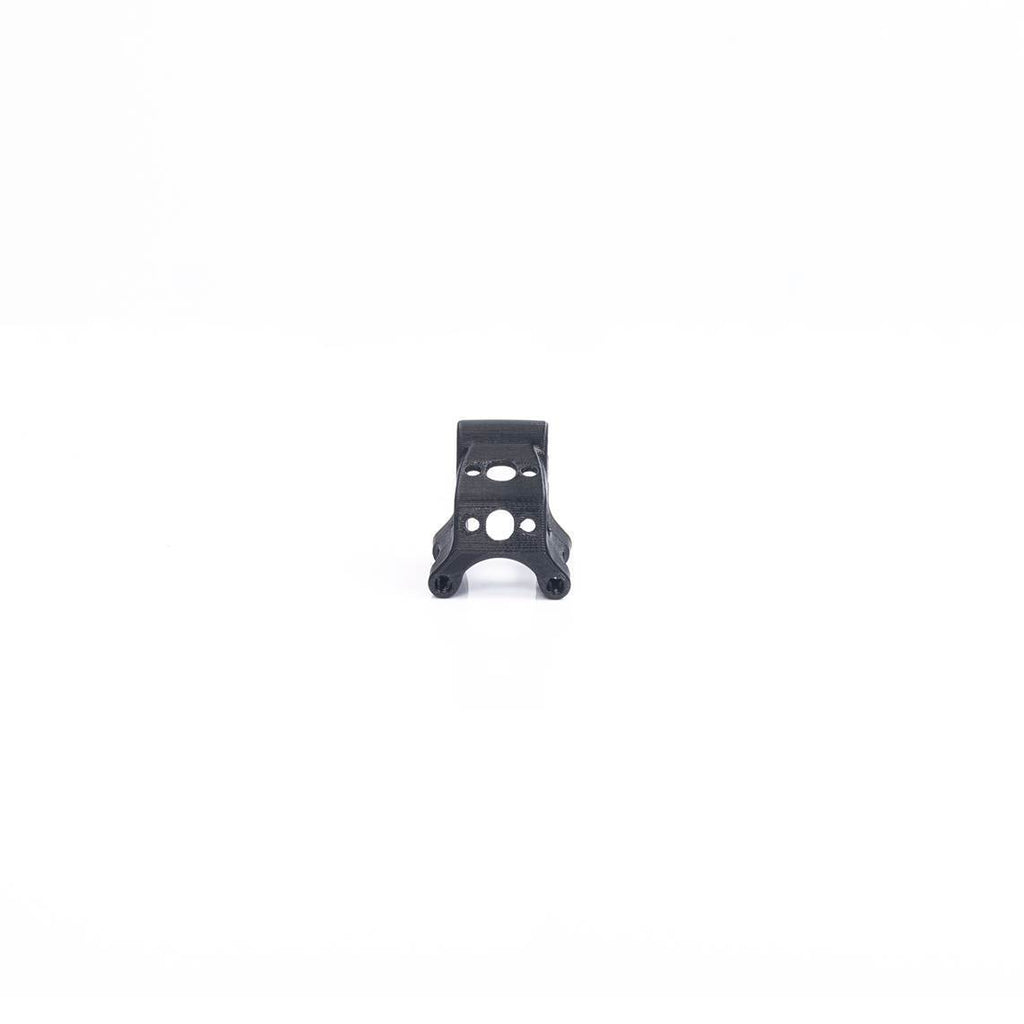

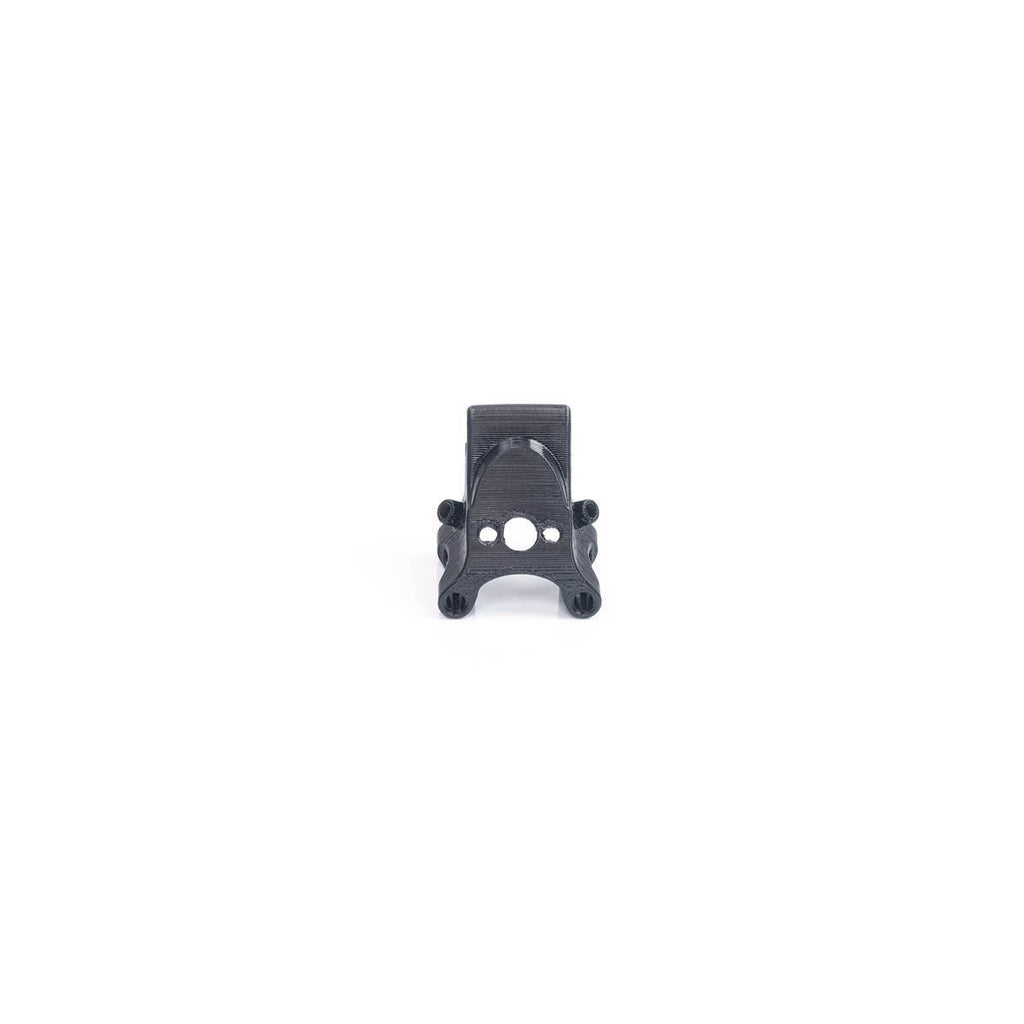

Name MX-C  DJI Antenna Mounting
Product Size 32.5*28*30mm
Weight 5.0g
Description Black TPU
Adaptive DJI Antenna/SMA Antenna/T-type Antenna
Antenna mounting* 1 pcs
SKU DT-FK19-MXC3-DJIOS-2

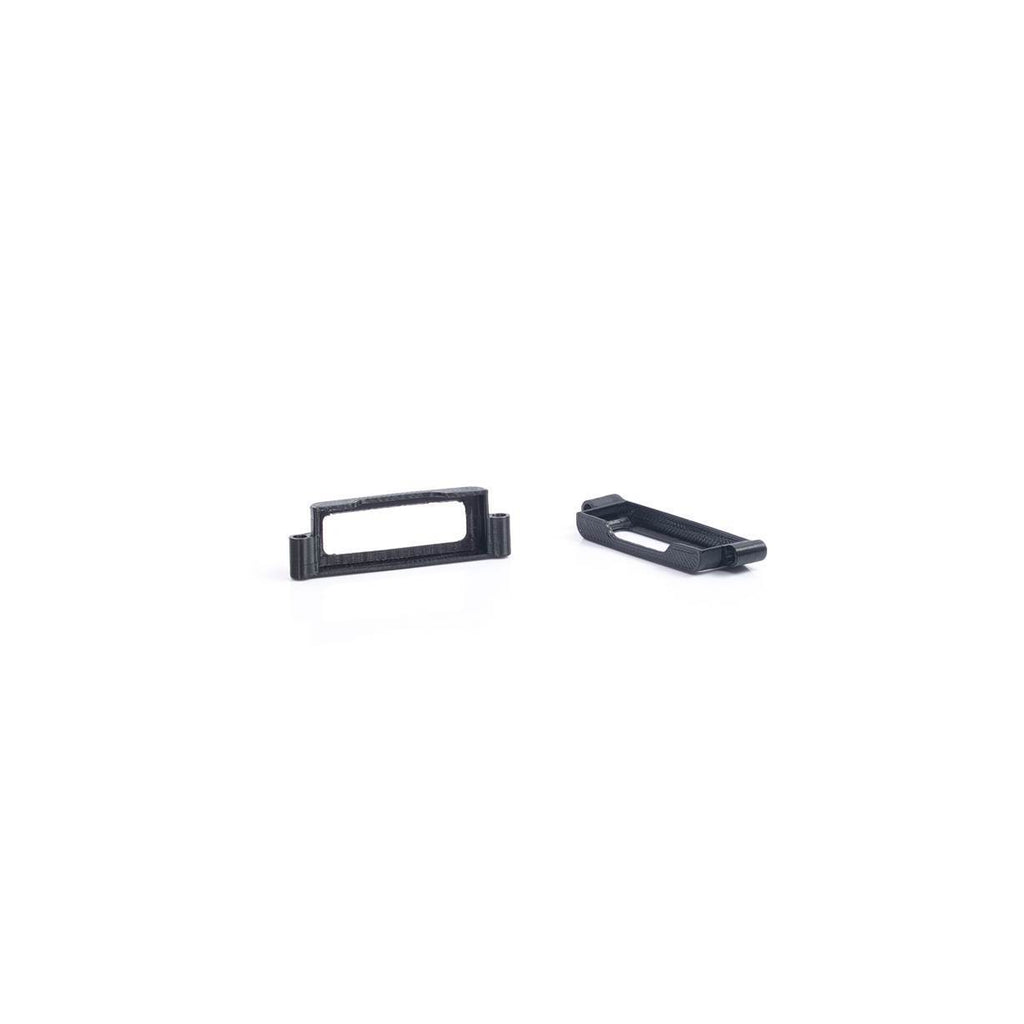

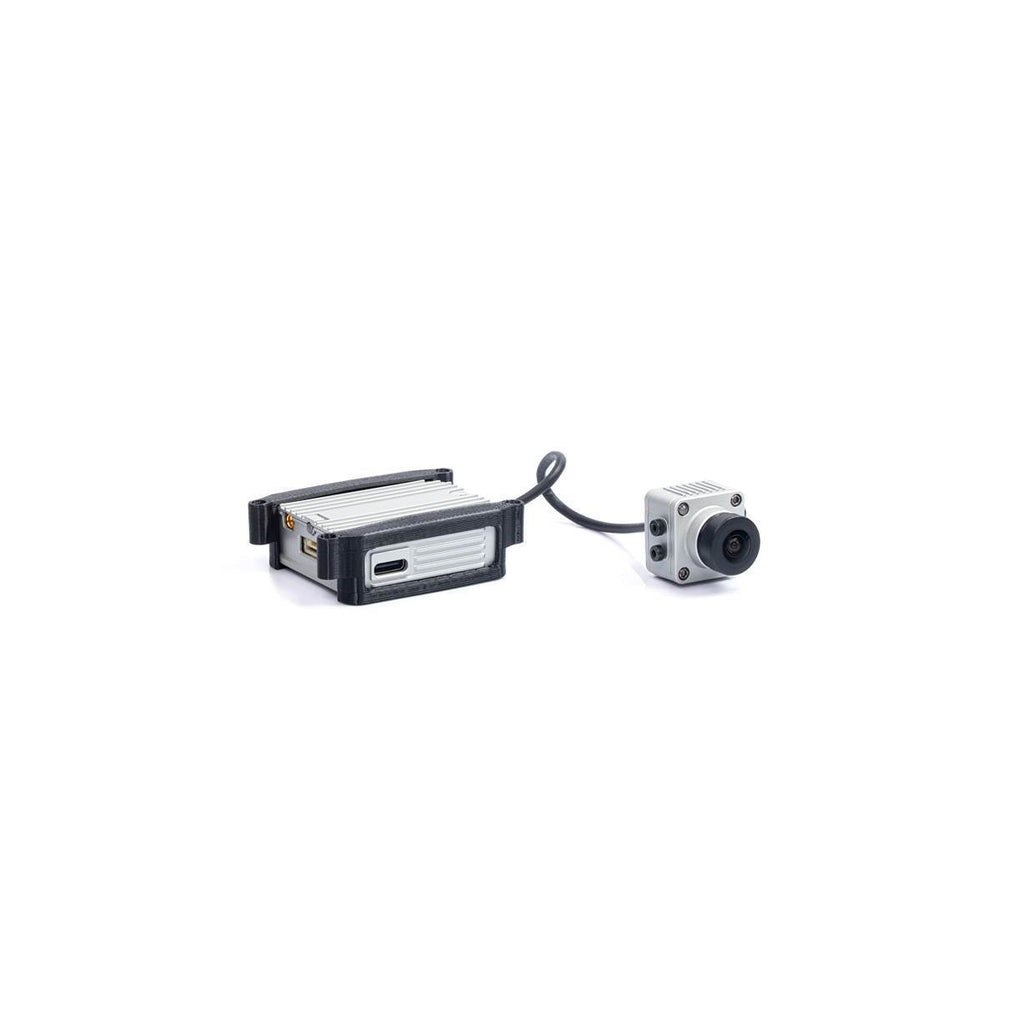

Name MX-C  DJI Air Unit Mounting(2pcs)
Product Size 55*16*7mm
Weight  3.0g2pcs
Description Black TPU
DJI Air Unit Mounting* 2pcs

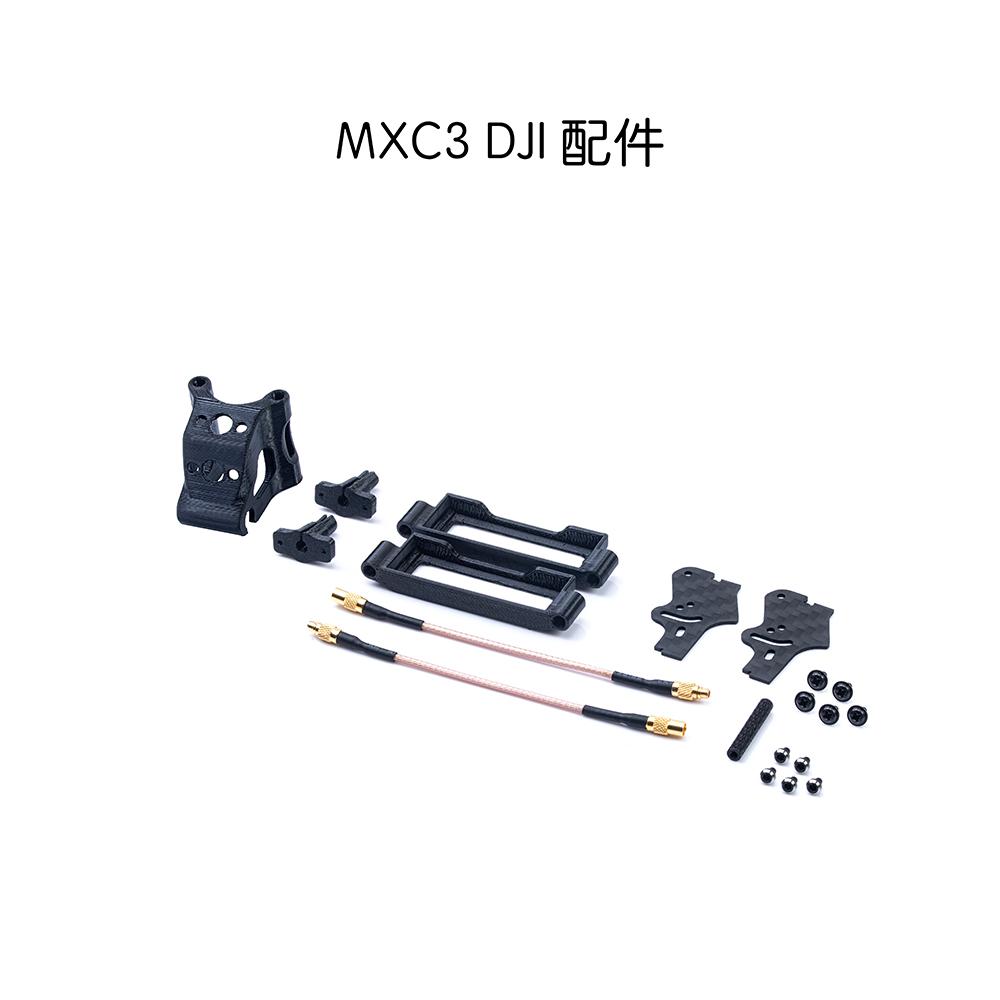

SKU DT-FK19-MXC3-DJI-AS
Name MX-C  DJI Accessories set
Weight 15g
Description DJI antenna mount * 1
Air unit fixed mount * 2
MMCX to SMA connector * 2
MMCX extension connector * 2
MMCX printed antenna mount * 2
M3 * 3 iron cup Hexagon screw * 6
M2 * 5 Self-tapping Phillips screw * 6
M2 * 3 iron cup head hexagon screw * 6

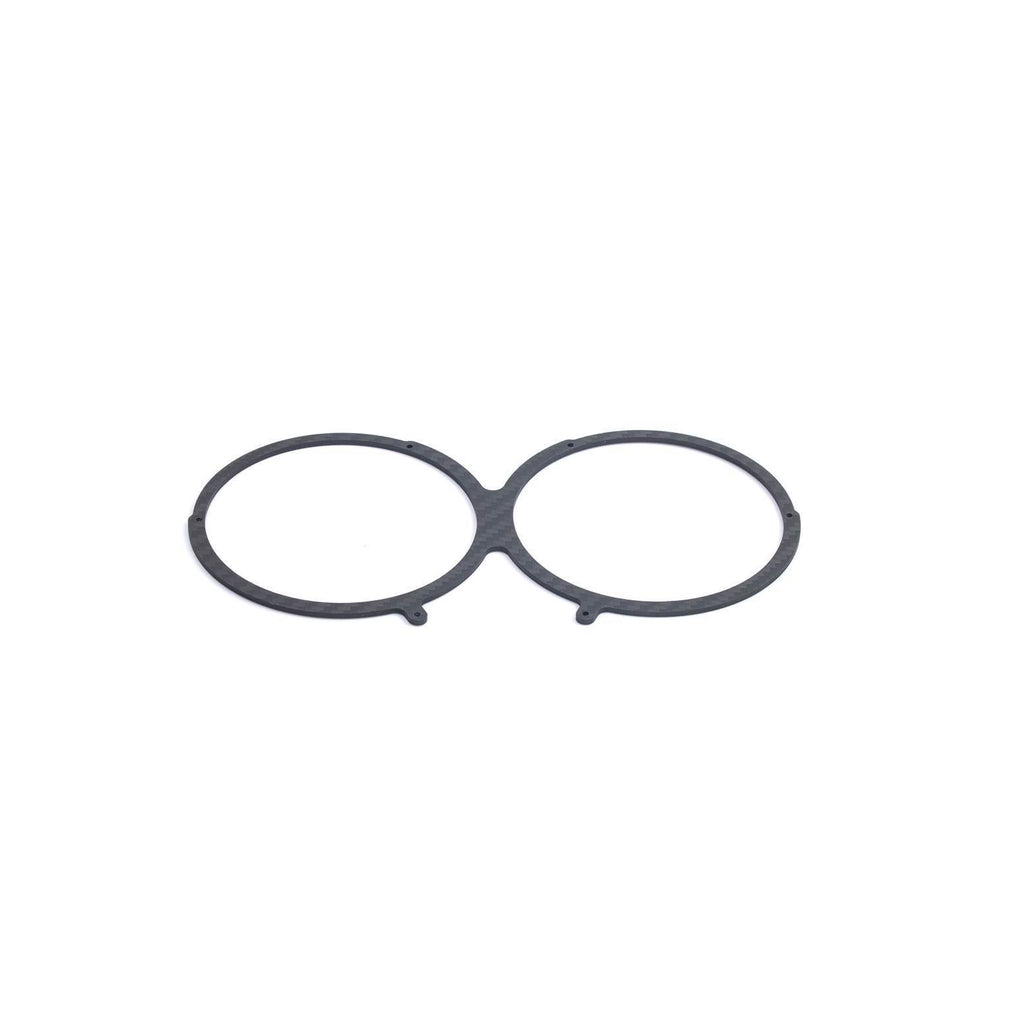

SKU DT-FK19-MXC3-ARM
Name MX-C Arm
Product Size 186*93*2.5mm
Weight 16.0g
Description 2.5mm Toray 3K pure carbon fiber board
Arm Mounting hole: 12*12mm
Arm *1pcs

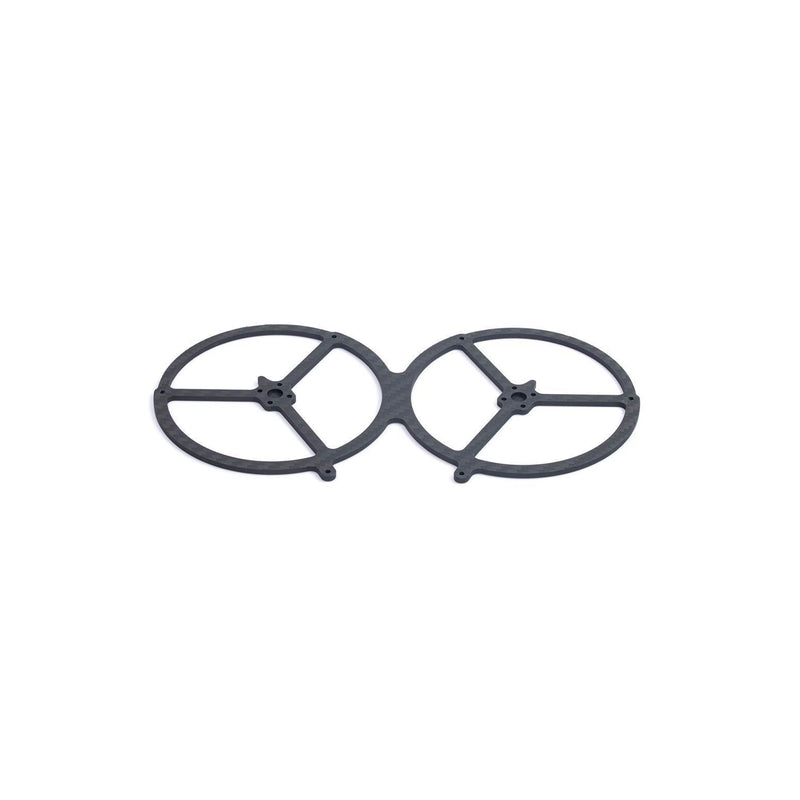

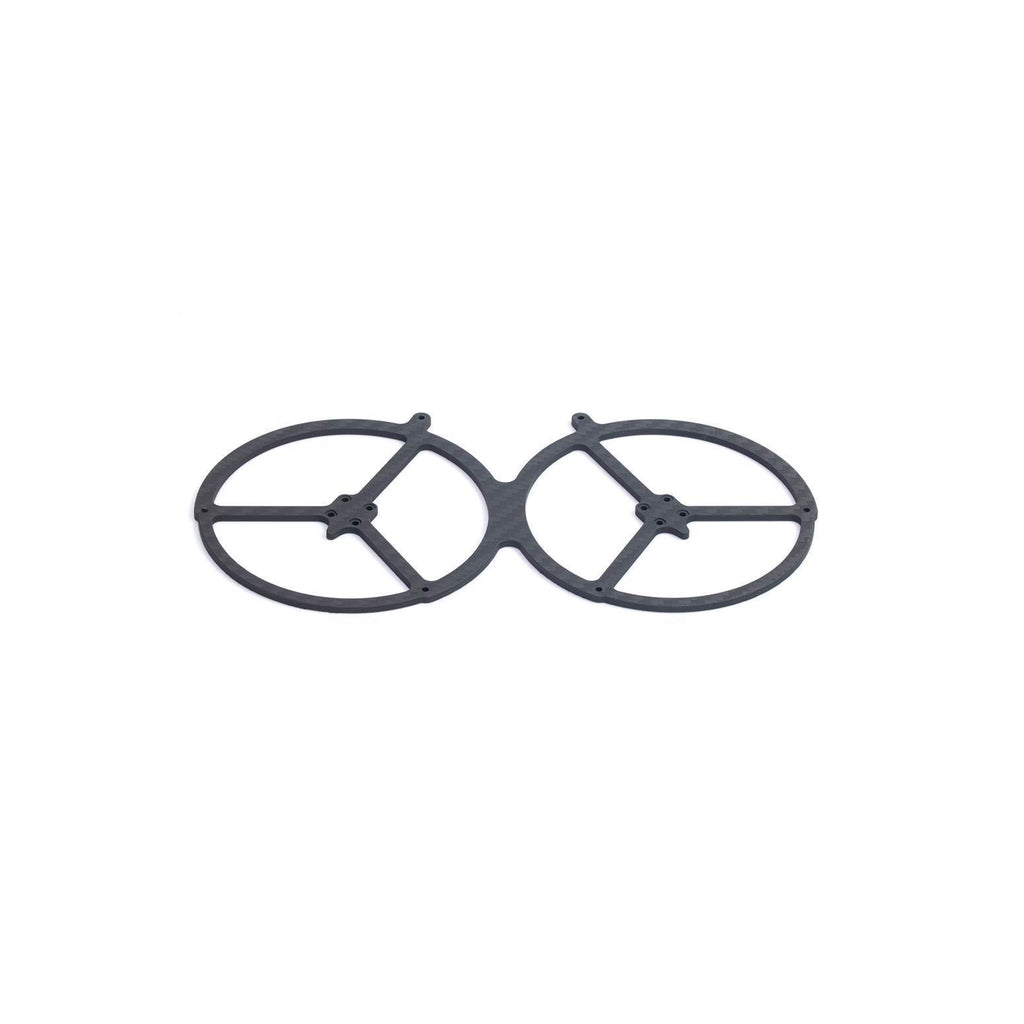

SKU DT-FK19-MXC3-ARM-UP

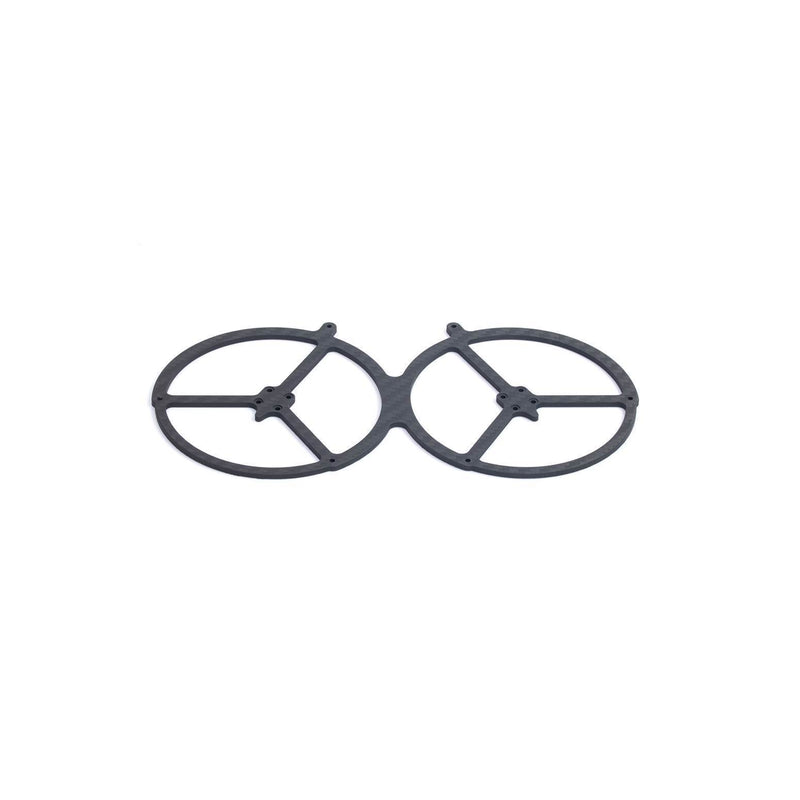

Name MX-C Arm Upper Plate
Product Size 186*93*2mm
Weight 9.0g
Description 2mm Toray 3K pure carbon fiber board
Arm Upper Plate *1pcs

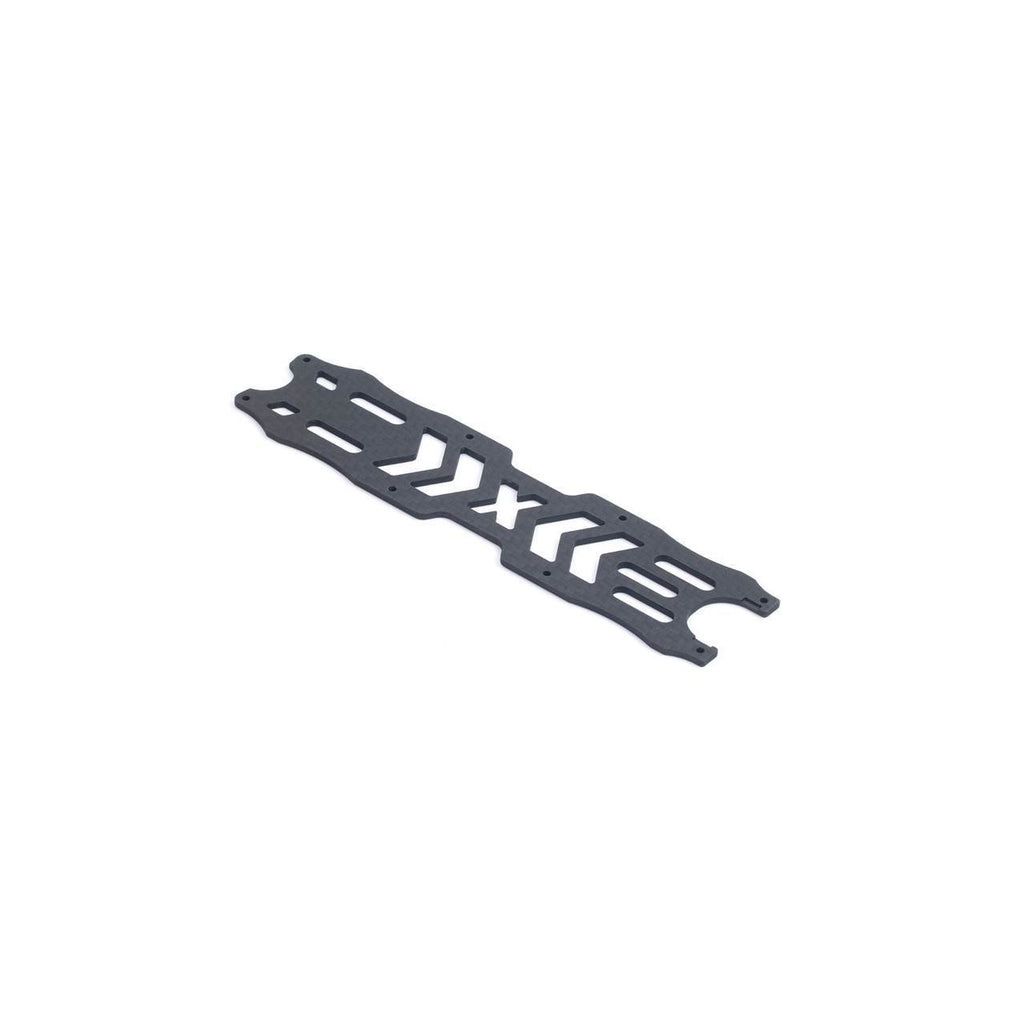

SKU DT-FK19-MXC3-UP
Name MX-C Upper Plate
Product Size 155*38*2mm
Weight 11.5g
Description 2mm Toray 3K pure carbon fiber board
Upper Plate *1pcs

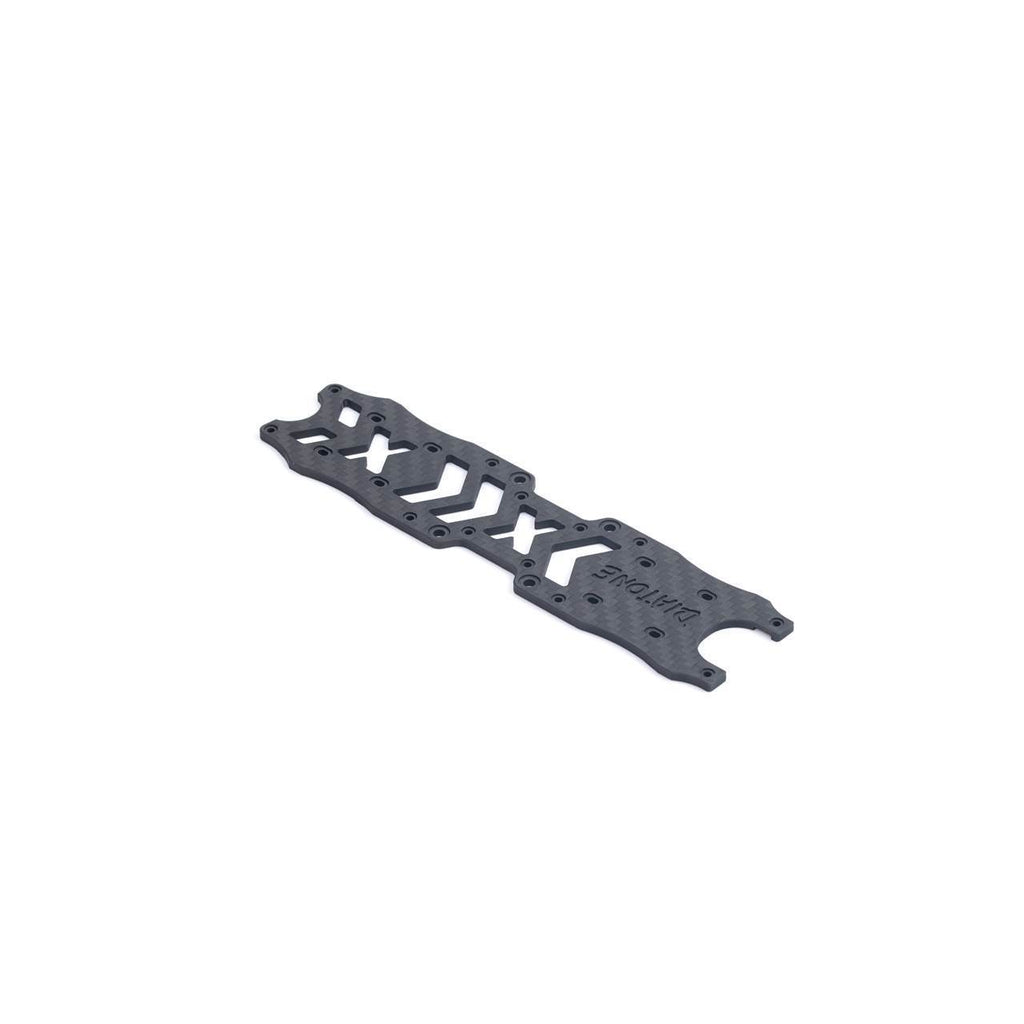

SKU DT-FK19-MXC3-LP
Name MX-C lower Plate
Product Size 155*38*2.5mm
Weight 15g
Description 2.5mm Toray 3K pure carbon fiber board
3 sets of mounting holes
 20*20/2sets,30.5*30.5/1set
lower Plate* 1pcs

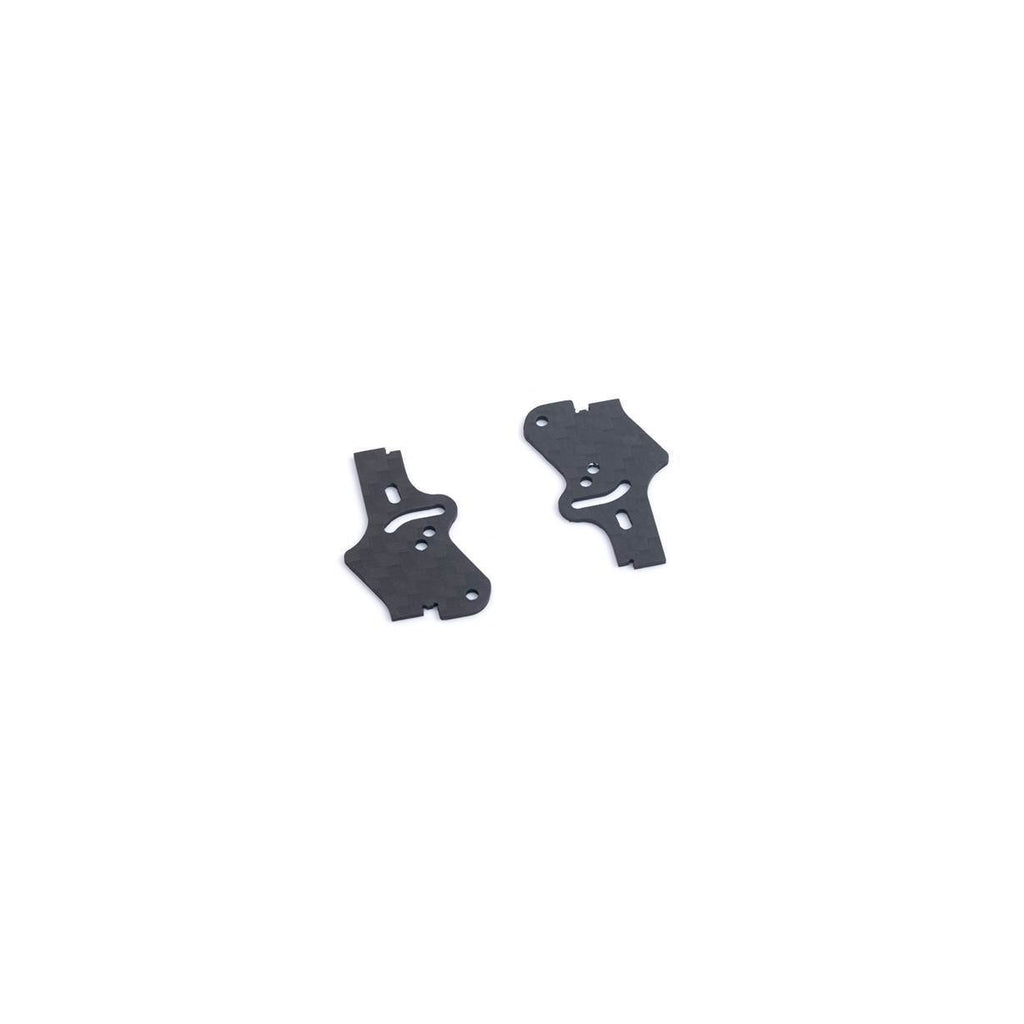

SKU DT-FK19-MXC3-CFS-2
Name MX-C Camera Side Plate(2/pcs)
Product Size 33.5*21.5*1.5mm
Weight 1.9g
Description 1.5mm Toray 3K pure carbon fiber board
19*19mm Camera Mounting
Camera Side Plate* 2pcs
SKU DT-FK19-MXC3-CFS-DJI-2
Name MX-C DJI Camera Side Plate(2/pcs)
Product Size 33.5*21.5*1mm
Weight 1.4g
Description 1mm Toray 3K pure carbon fiber board
20*20mm Camera Mounting
DJI Camera Side Plate* 2pcs

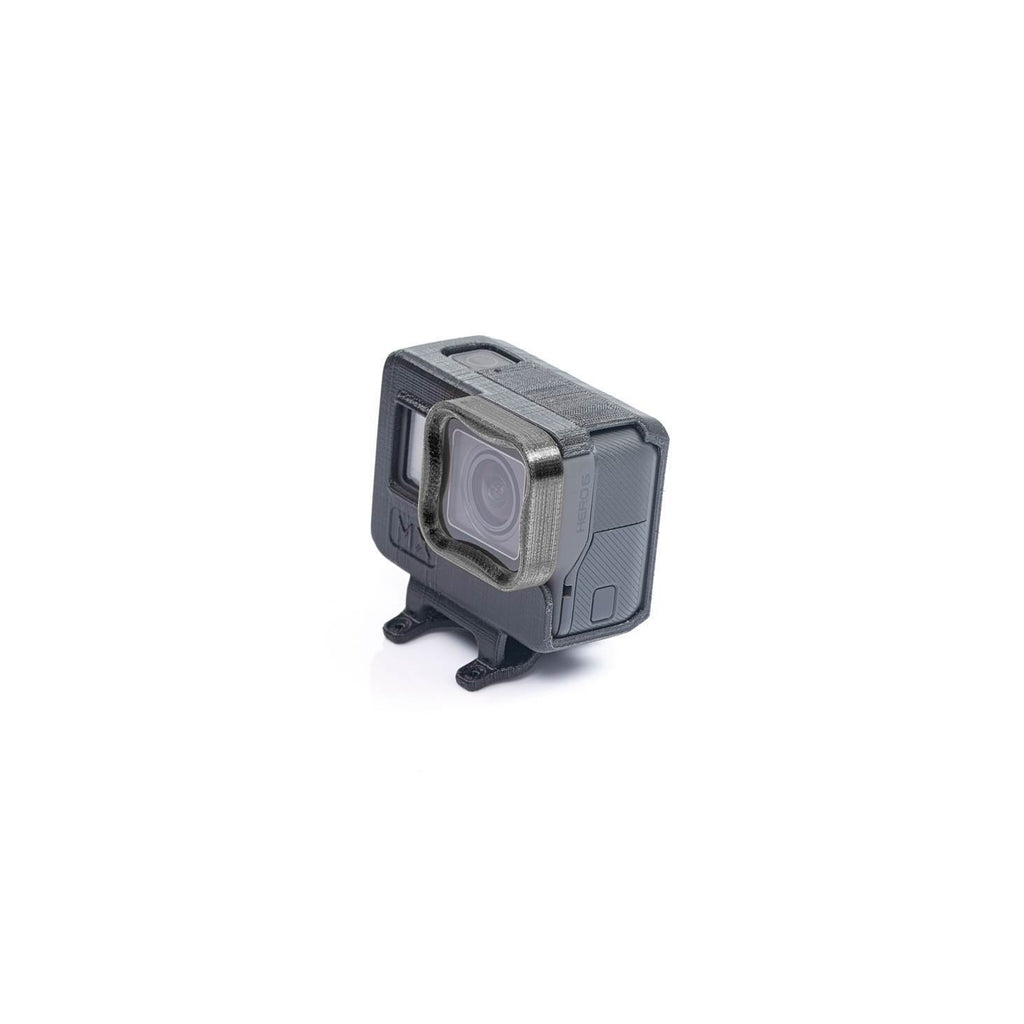

SKU DT-FK19-MXC3-GO7-15
Name

MX-C GOPRO7 Mounting base 15 degrees

(All enclosure)

Product Size 70*69*59mm
Weight 20.5g
Description Black TPU
All surrounded with GOPRO 5,6,7
Gopro7 Mounting base* 1pcs
M2*5*0.5 steel washer* 3pcs
M2*7 Iron Cup head Hex Socket Screw*3 pcs

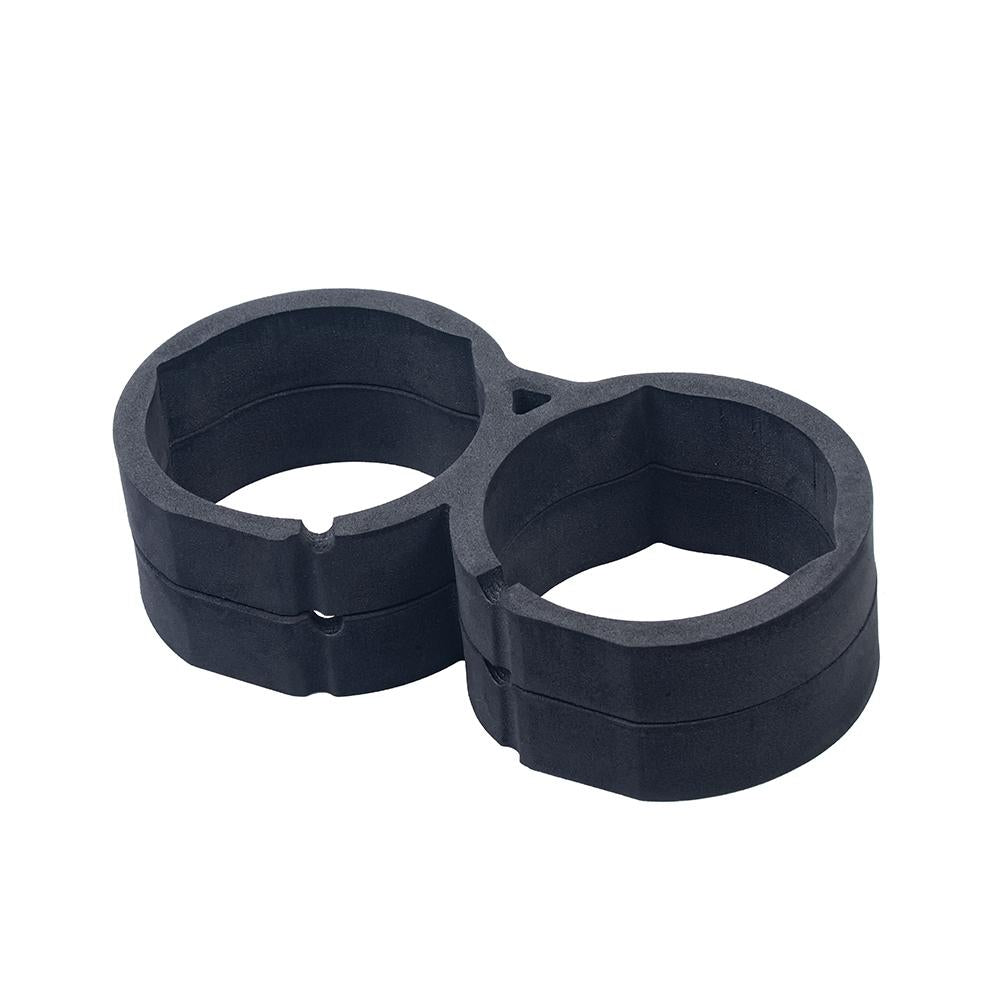

 SKU DT-FK19-MXC3-EVA-2
 Name MXC3 EVA Circle(2/pcs)
 Weight 14.5g
 Description Black EVA        Impact protection     2pcs

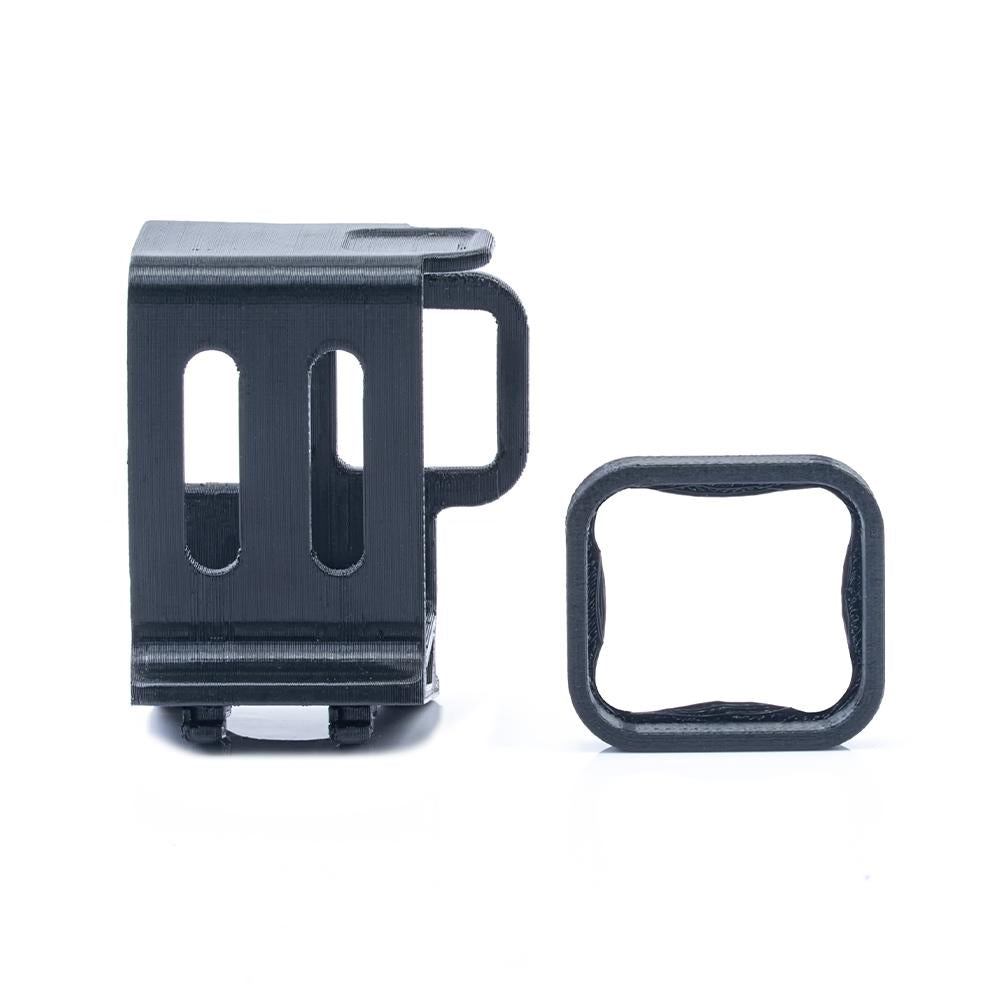

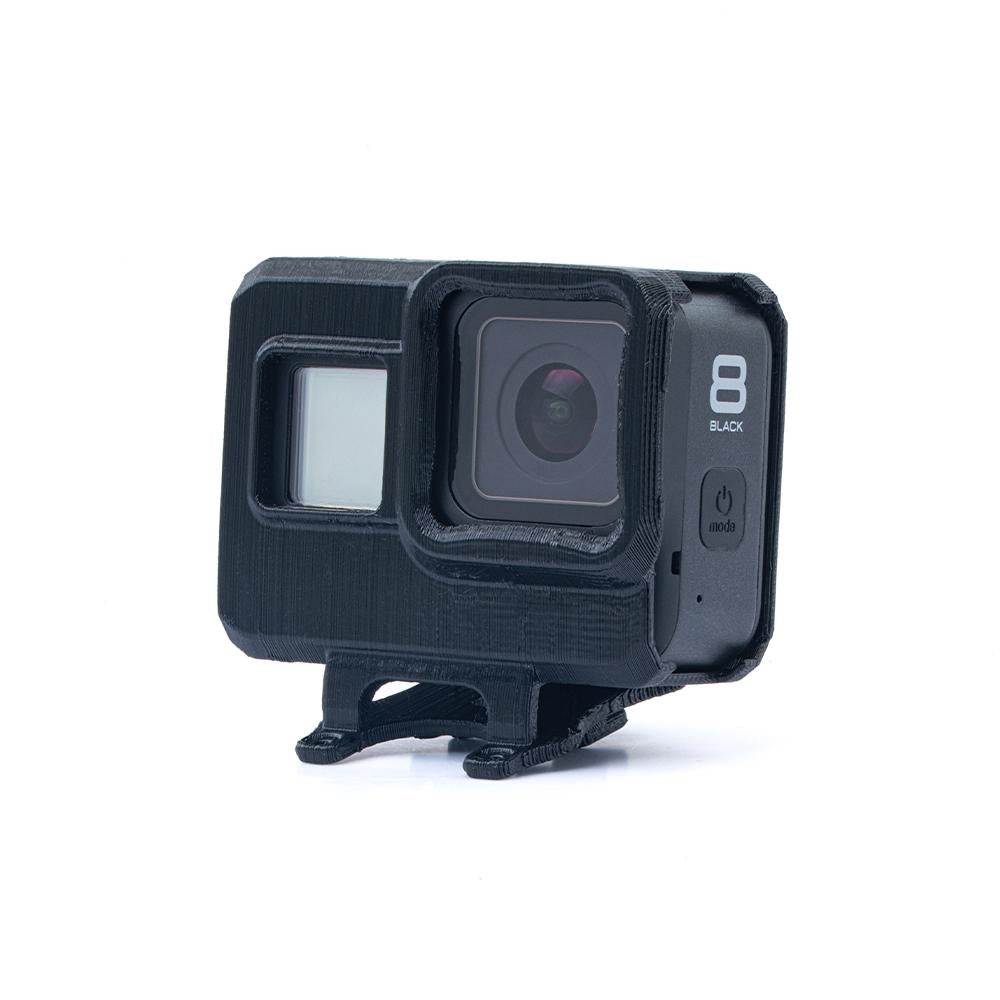

 SKU DT-FK19-MXC3-GO7-12
 Name MXC3 GOPRO7 Mount12 Degraee(semi-enclosed)
 Weight 18.1g
 MOQ 5 PCS
 Describtion MaterialBlack TPU/
List

gopro7 Mount*1
Lens protector*1
M2*5*0.5 Metal sheet *3
