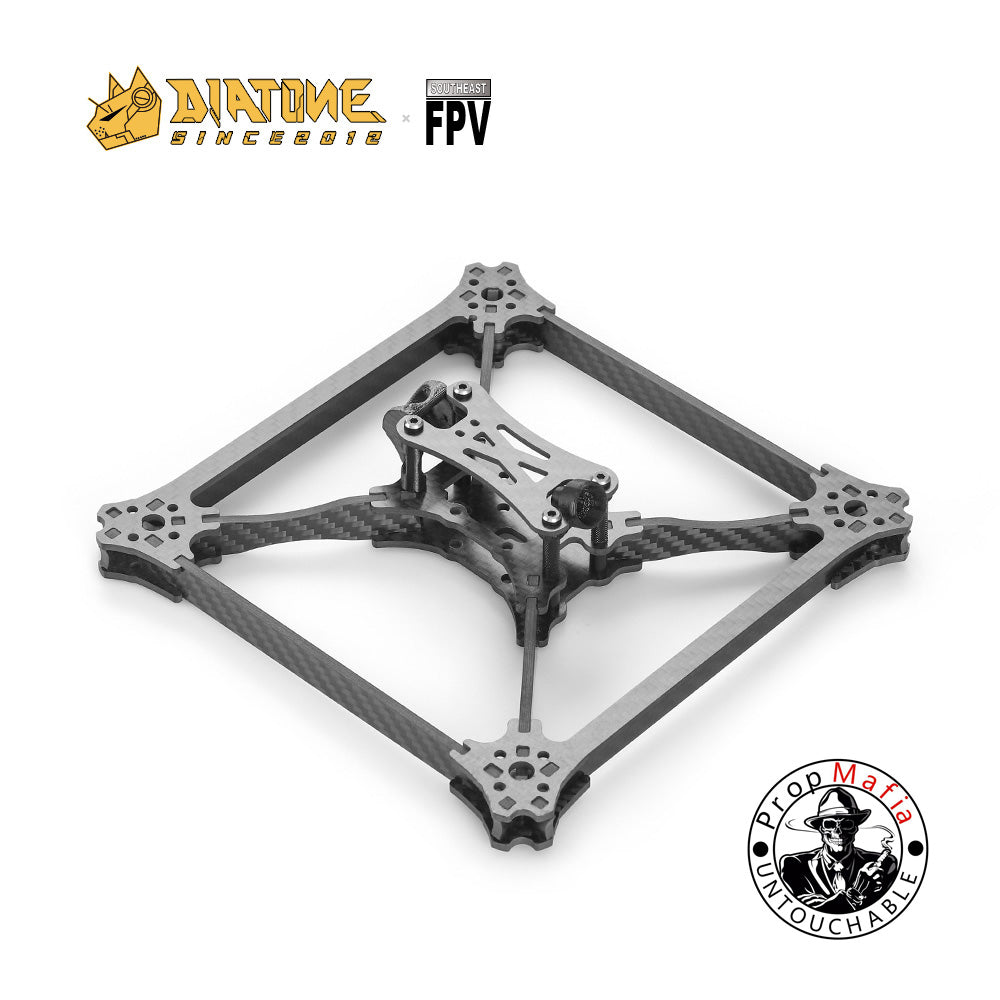

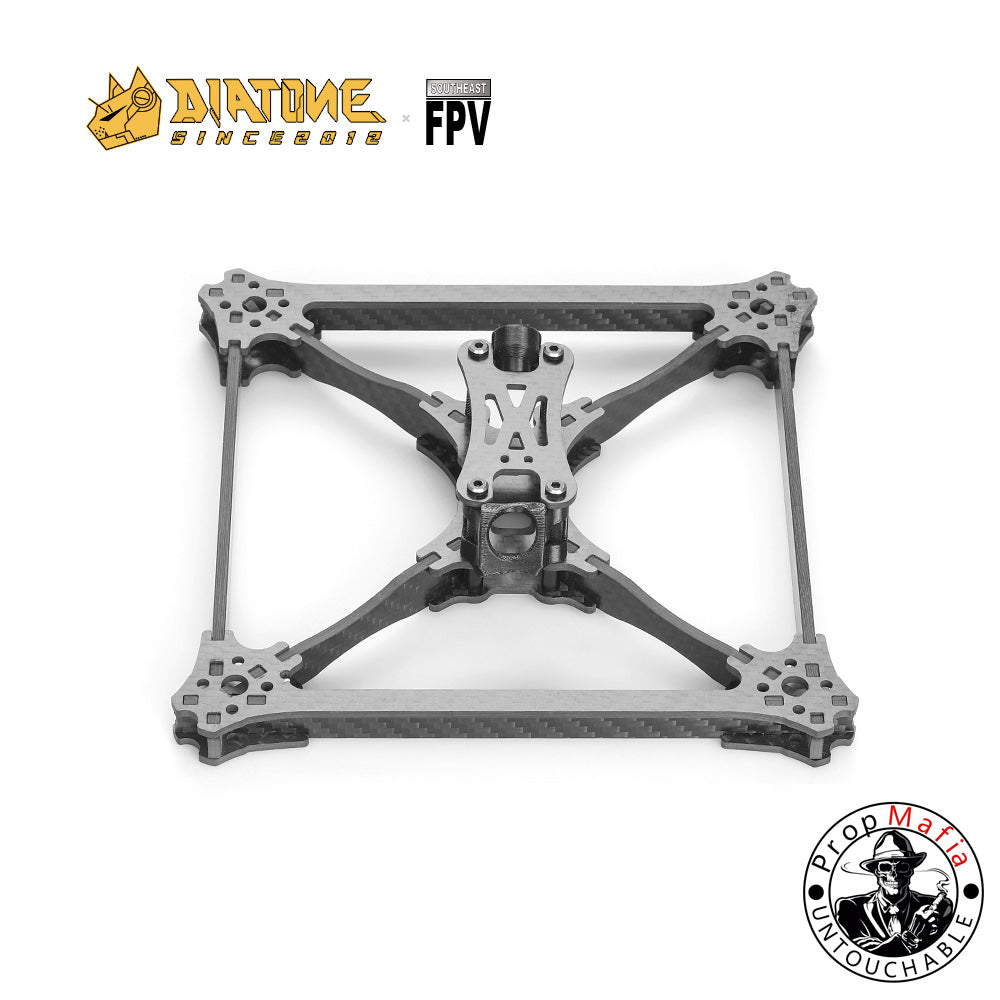

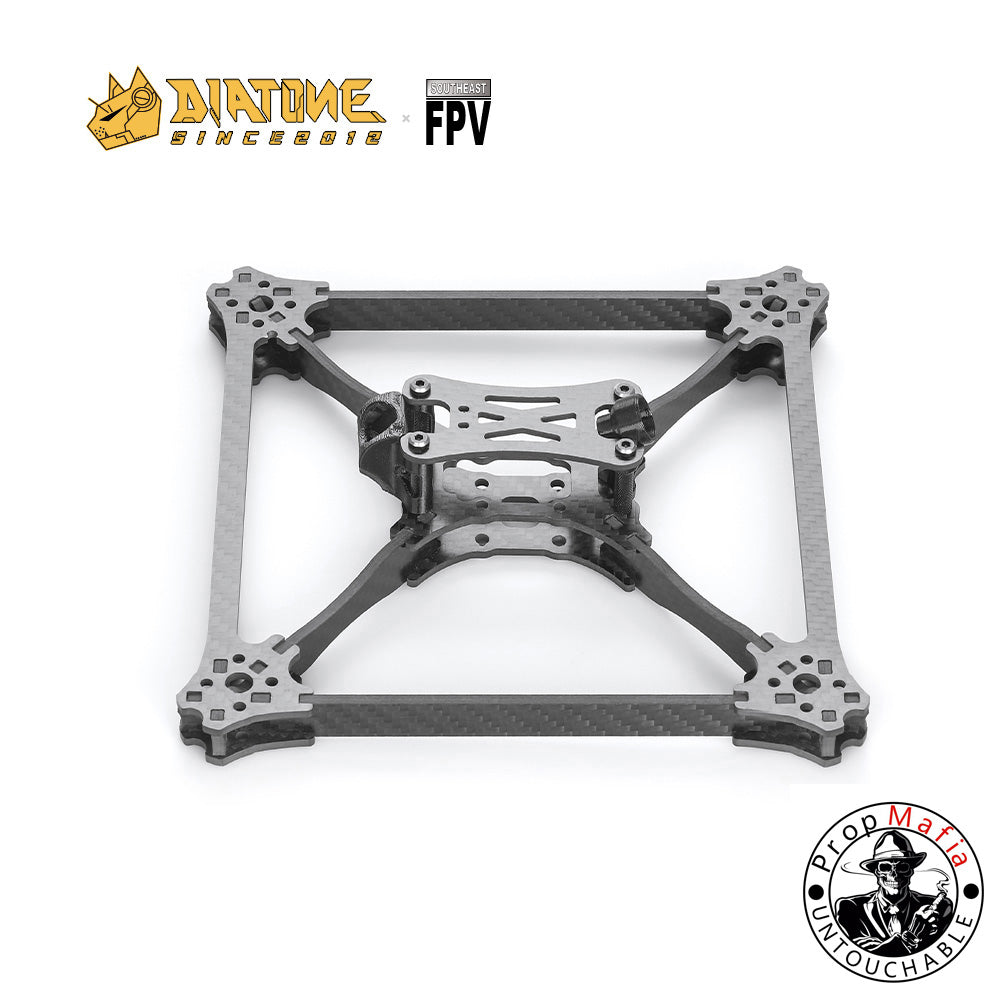

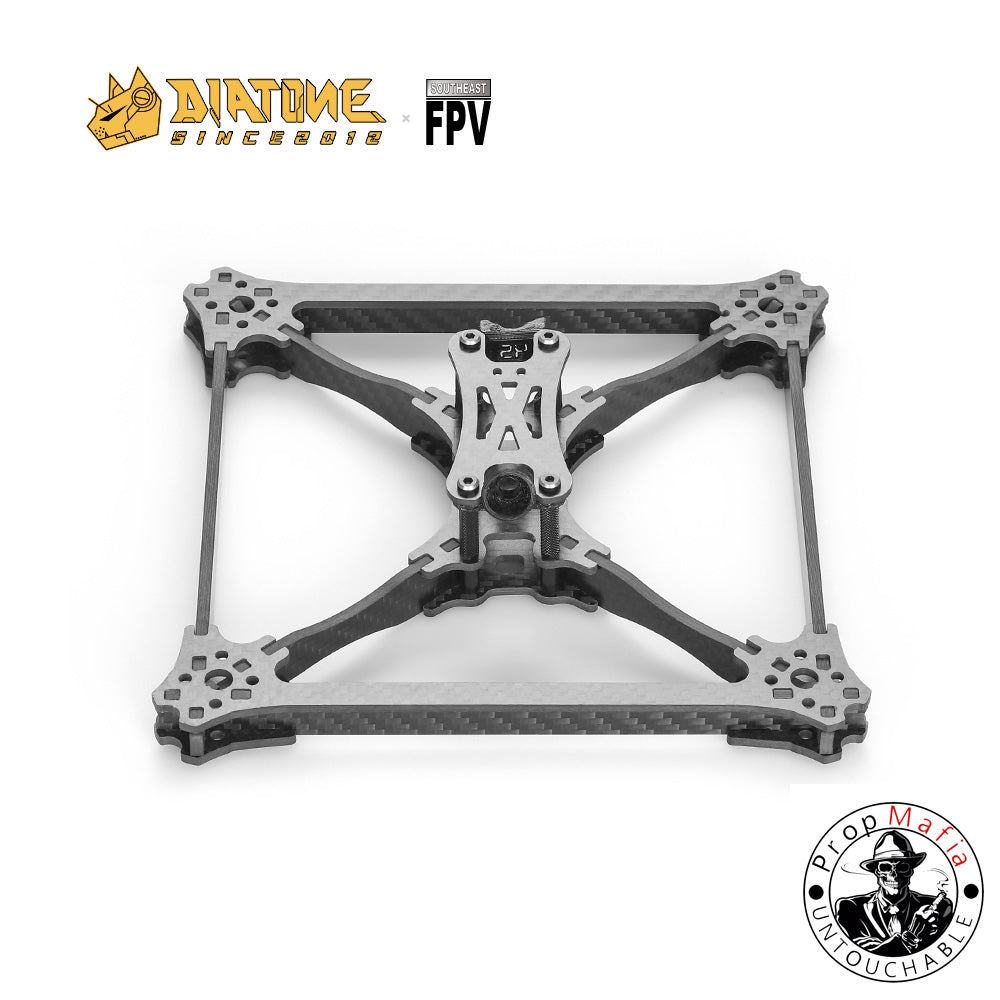

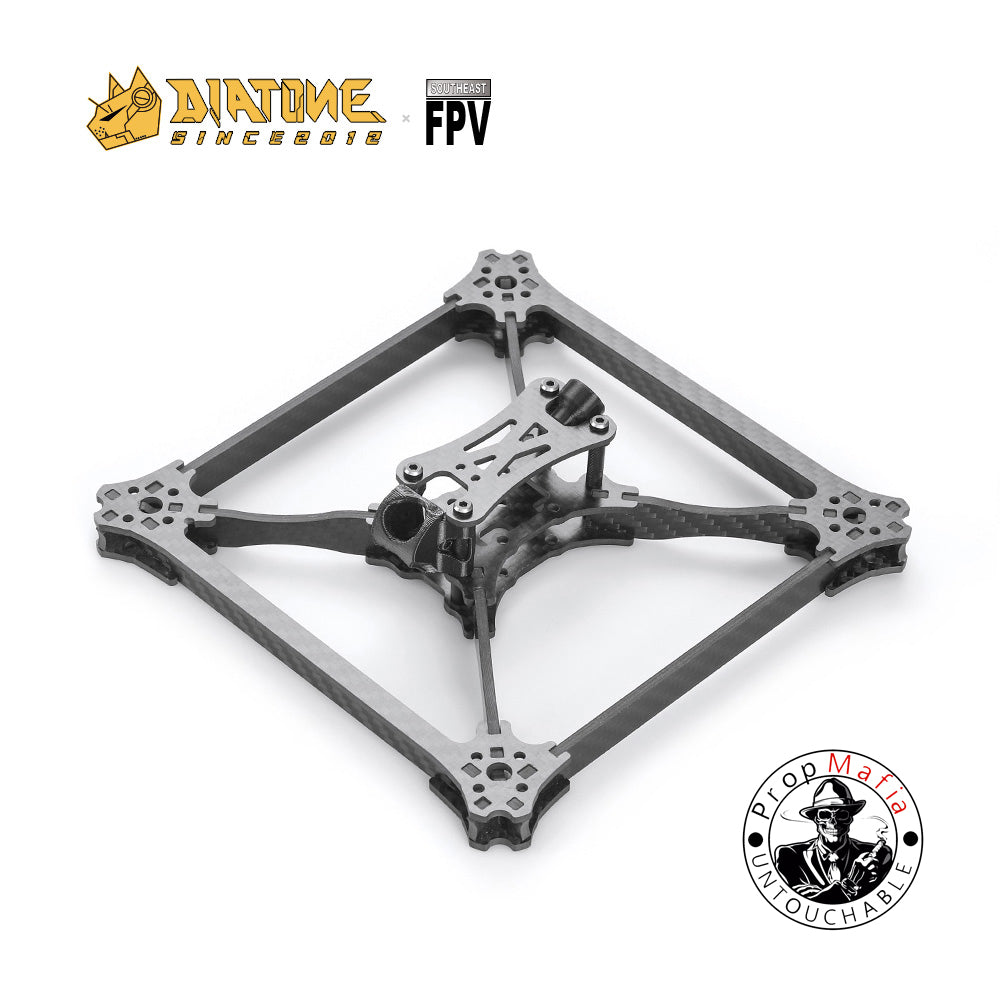

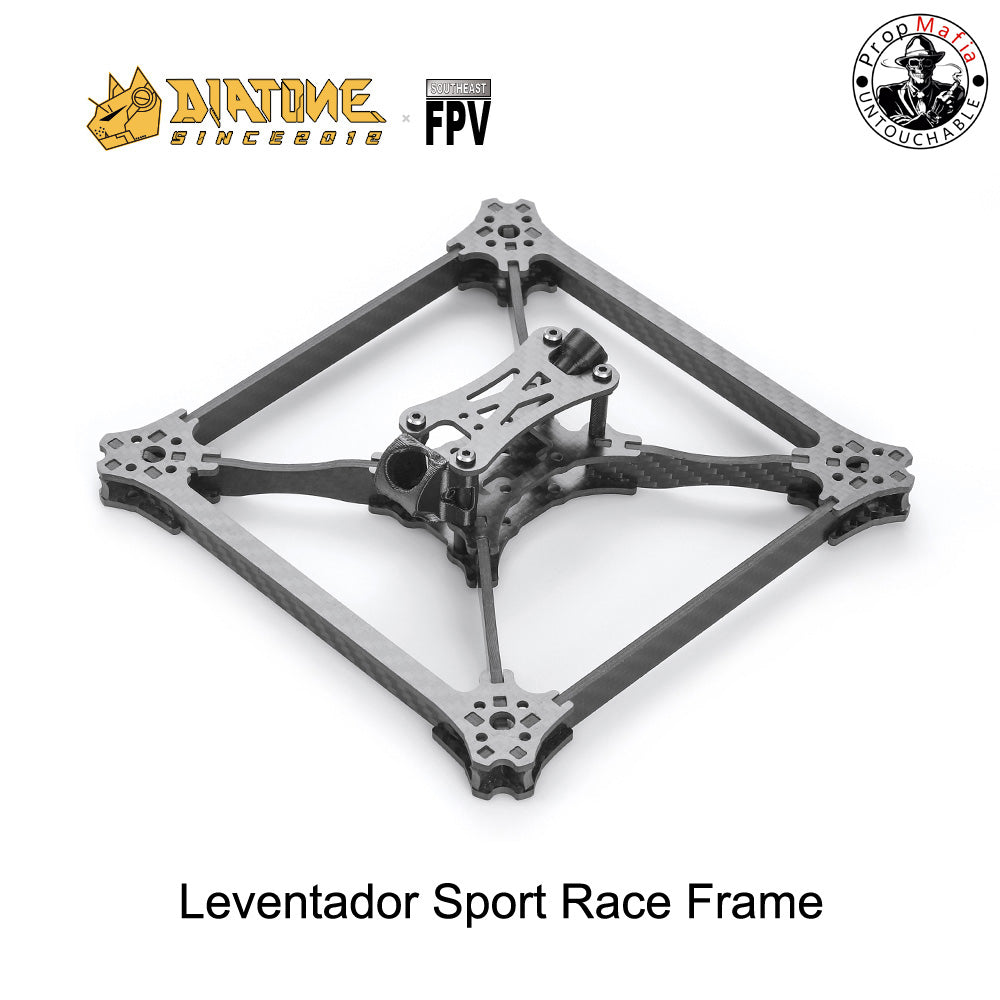

LeventadorX Sport Frame


Price:
Sale price$49.99

Description

LeventadorX Sport Frame

Sport version Accessories


Wheelbase :198mm
Weight :100g
Prop Siza :5 inch
FC Mounting:20×20mm(M2)
Motor Mounting:16mm(M3)
Camera Spacing:14mm
Max Stack Height: 20mm
Top Plate:2mm
Bottom Plate:2.5mm
Arm :2.5mm
Rated Volitage(Recommendation):4S~6S
carbon fiber:T300 3K
Recommended Motor Size: 22 Series motor



Carbon Fiber Parts

QTY 1 - Top Plate 2mm CF
QTY 1 - Mid Plate 2.5mm CF
QTY 1 - Bottom Plate 2.5mm CF
QTY 4 - Arm 3mm CF
QTY 4 - Motor Mount 2.5mm CF
QTY 2 - Dual Motor Mount 2.5mm CF
QTY 2 - Front/Rear Brace 3mm CF
QTY 2 - Side Brace 3mm CF



Hardware Kit

QTY 4 - M3x8mm Steel Bolts
QTY 4 - M3x20mm Steel Bolts
QTY 16 - M3x14mm Steel Socket Head bolts for motors
QTY 4 - M3x10 Black Knurled Standoffs





We have lots of accessories available on ThingiVerse, such as Immersion RC Ghost antenna holders, CrossFire mounts, various antenna mounts and FPV mounts for both RunCam and Foxeer.  You can also find others that have created parts by searching for the key word “Leventador” on ThingiVerse.

https://www.thingiverse.com/thing:4228273

Mount For SharkByte Vtx(By FireNWater) :https://www.thingiverse.com/thing:4709704

I am also the designer of the PyroCube and the same style design concepts were used on this frame as well so the same build approach can be used to build the Leventador.

For tips on how to build this style of box frame, please watch this video:

https://youtu.be/-KEGbtDKWpk

Most race builds with the Sport frame are coming in at about 315grs AUW.  The intent of this frame is to be a super durable practice frame, but there are lots of folks racing this frame and doing very well.  This frame was raced at the Mayhem 12 hr race and was never broken.  There are two sponsored Mamba pilots racing this frame and were doing so prior to Mayhem and after Mayhem and have yet to break the frame!
