MAMBA TOKA 2004 1700KV/2900KV Racing Motor Green


Version: 2004 1700kv Motor
Size: 1PCS
Price:
Sale price$16.99

Description

Specification:

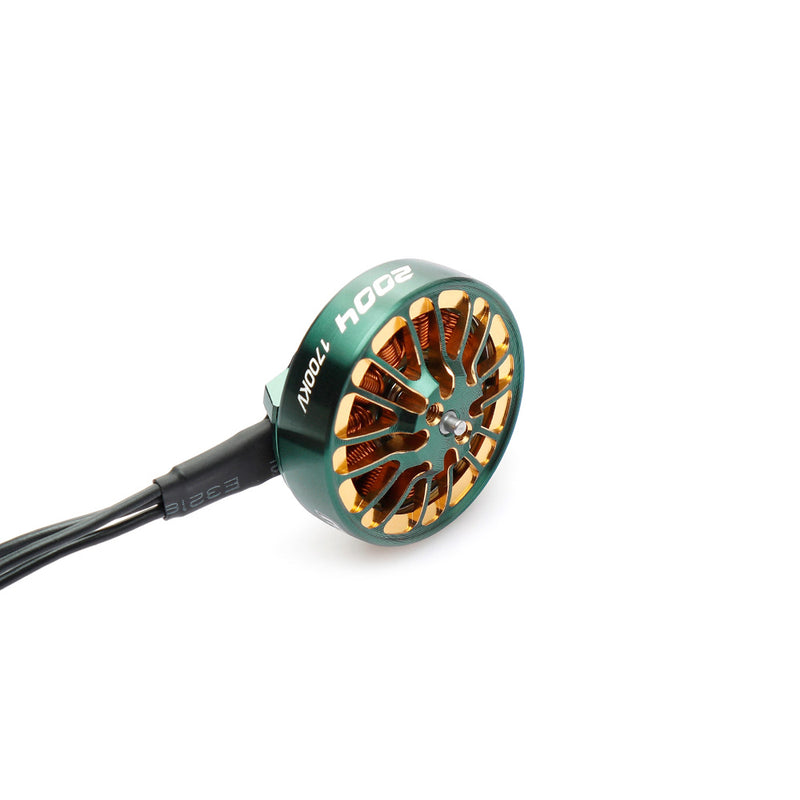

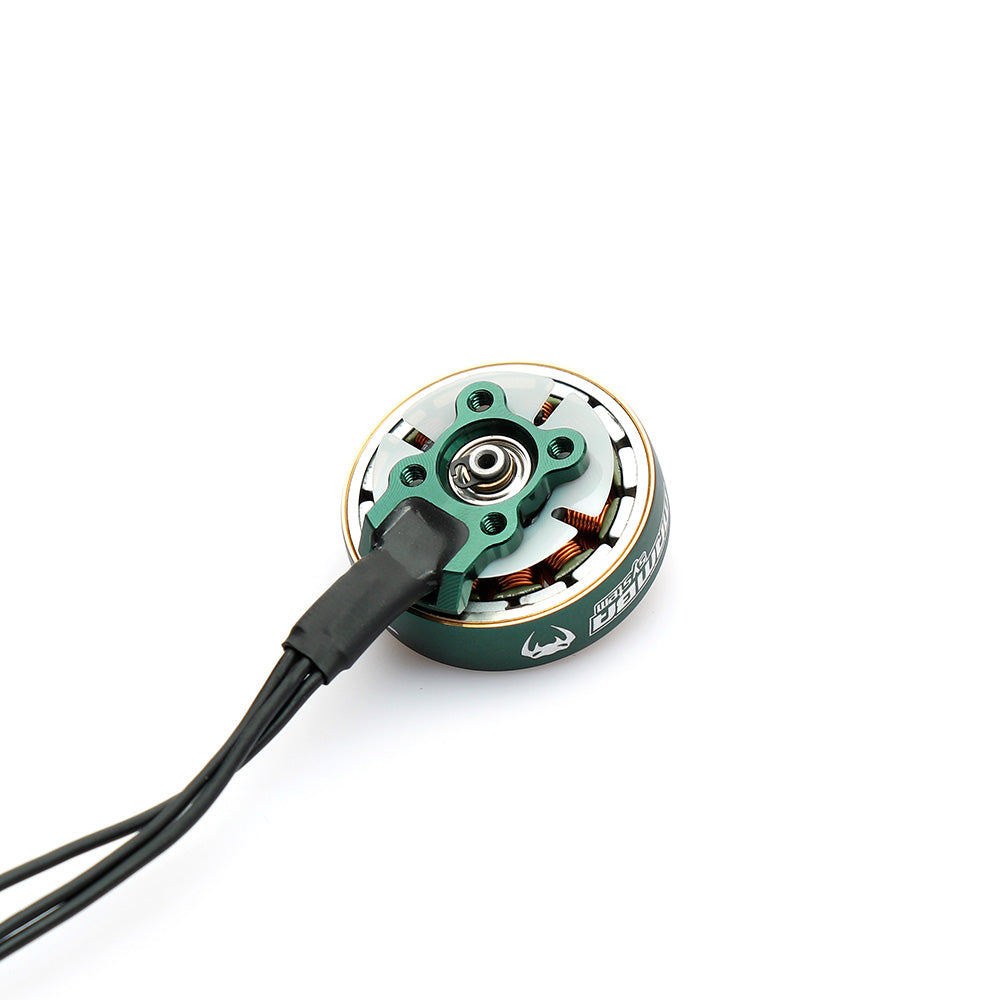

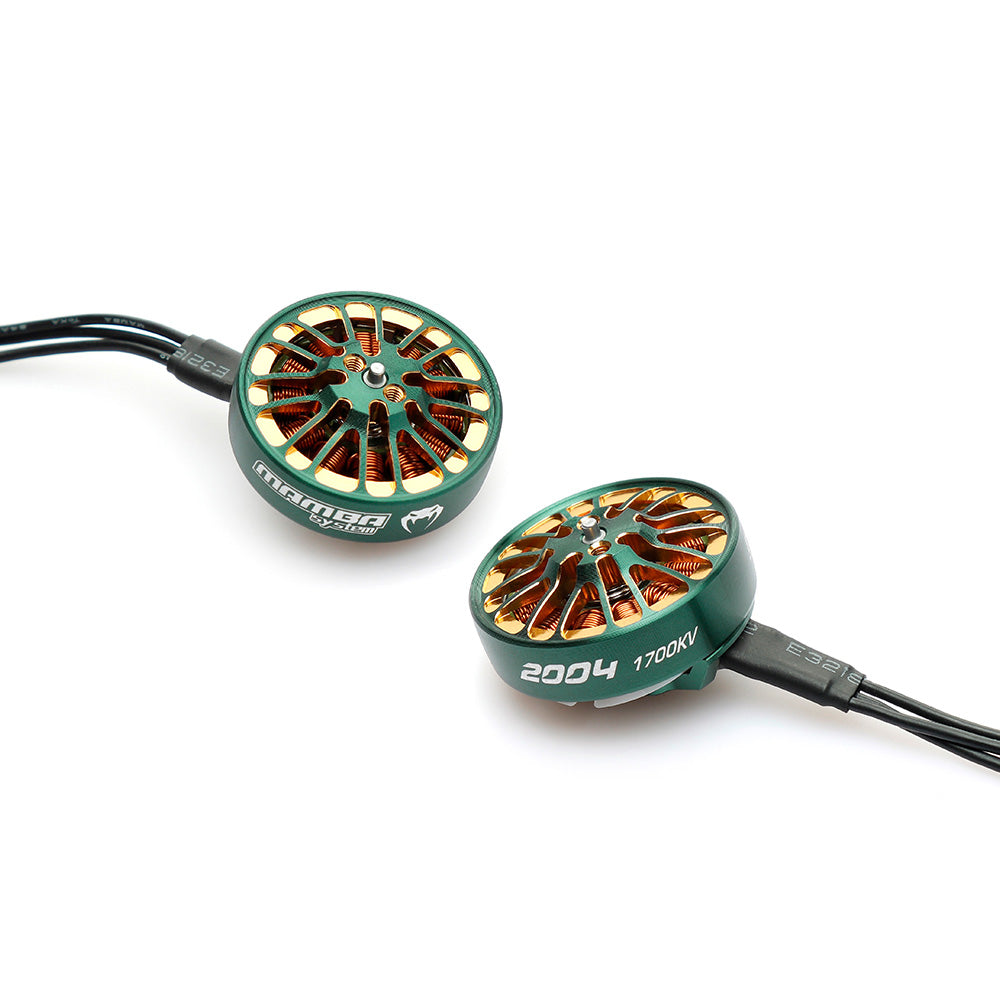

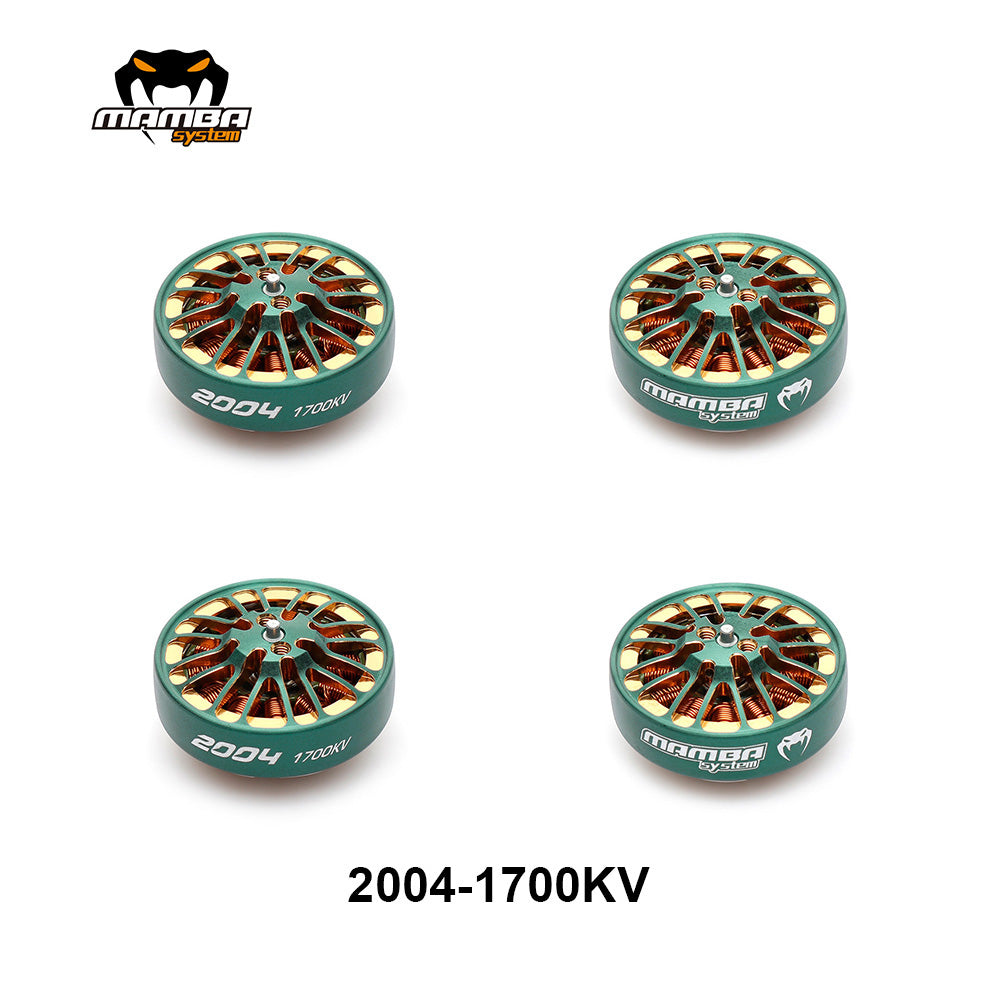

Mamba Toka 2004 1700KV Racing Motor

Overall Dimension:Φ26.2×15.3mm
prop mounting shaft diameter:1.5mm
Installation hole position:12×12mmM2
Prop: 3.5inch~5inch
Bearing7*3*3
Shaft Diameter:3.0mm
Lead Wire Size24AWG×150mm
slots/poles:12N14P
Magnet Wire: 240 Enameled Wire
Stator Diamter20mm
Stator Height:4mm
Rated Voltage:4~6S (16.8V~25.2V)
Peak Current: 17.52A
ldle Current10V/0.3~0.8A
Maximum Power: 418.1W
Internal Resistance210mΩ

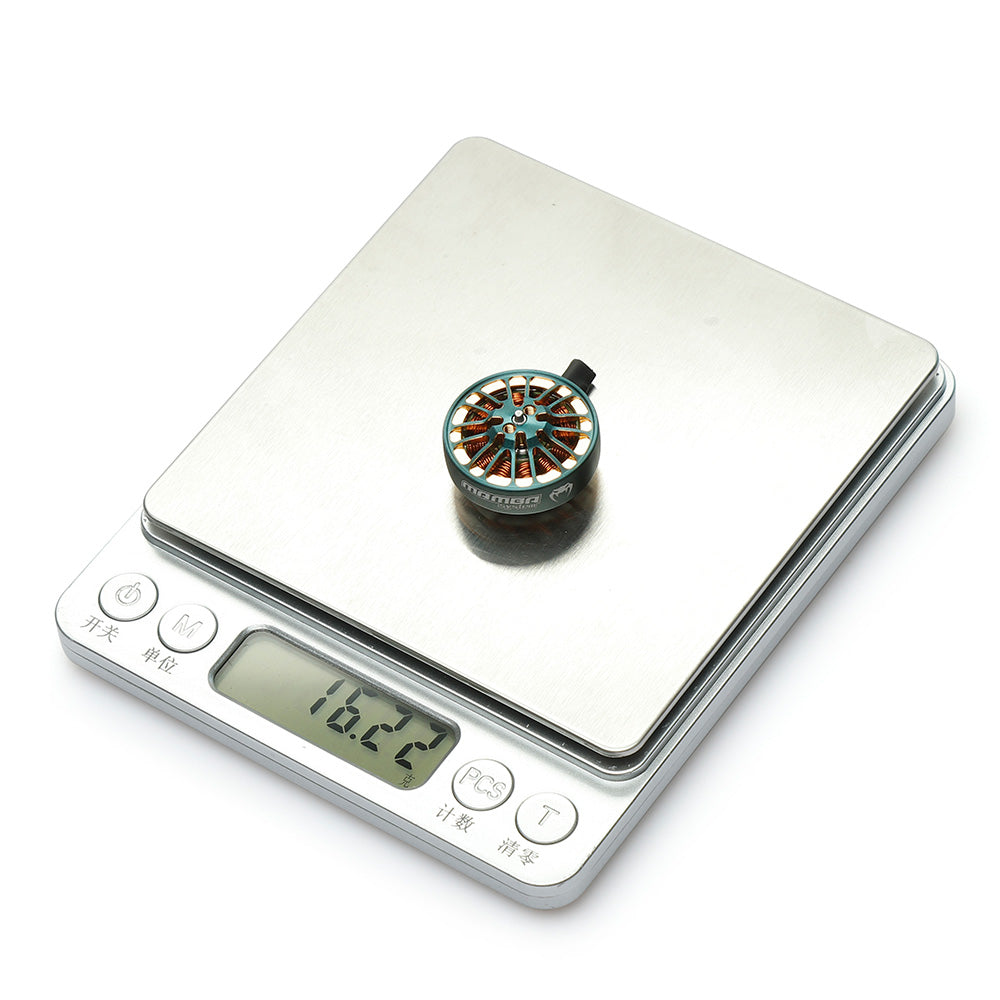

Weight: 16.3g

2004 1700KV motor table

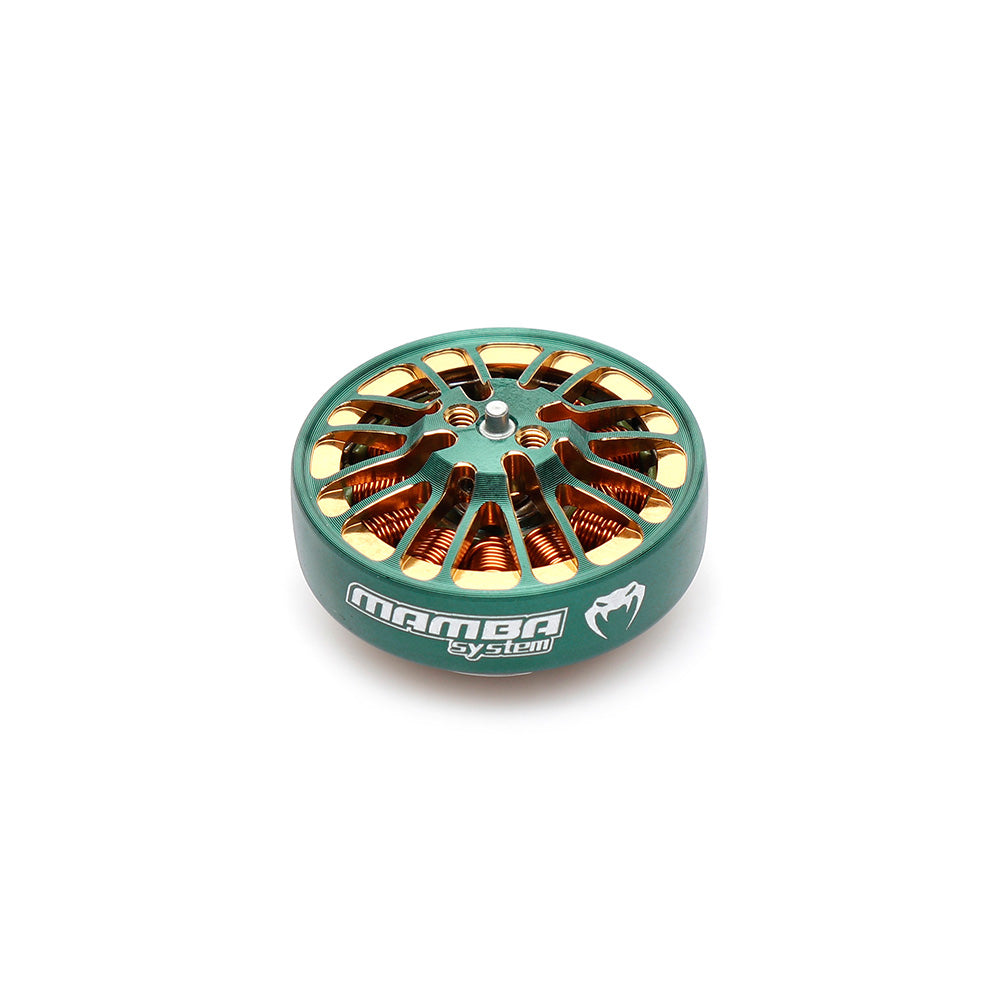

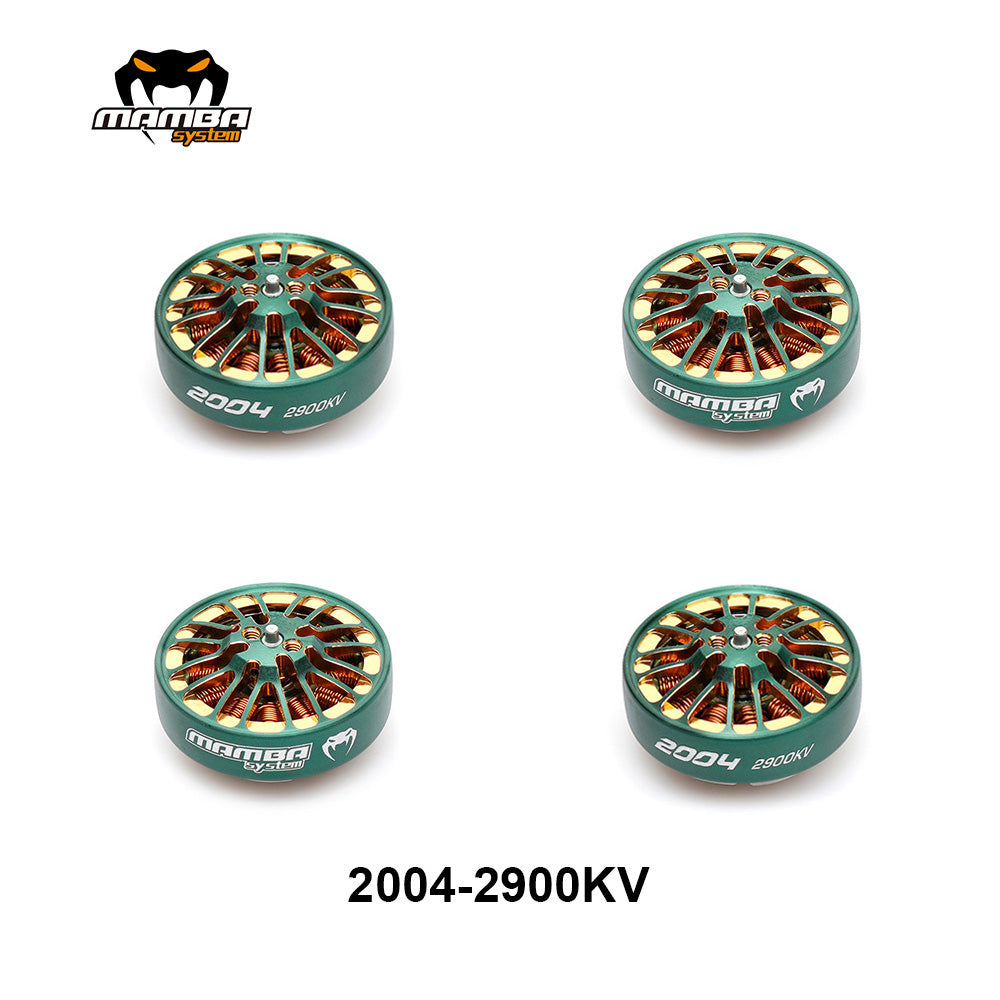

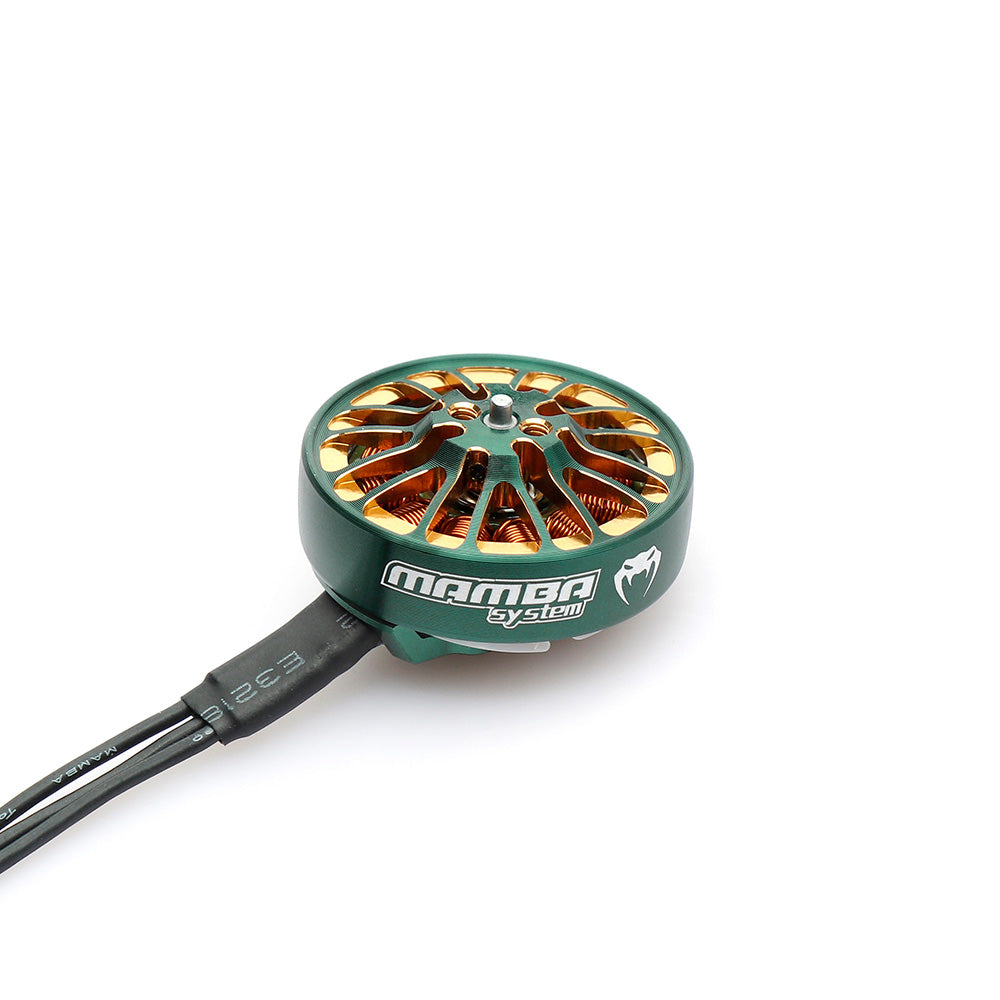

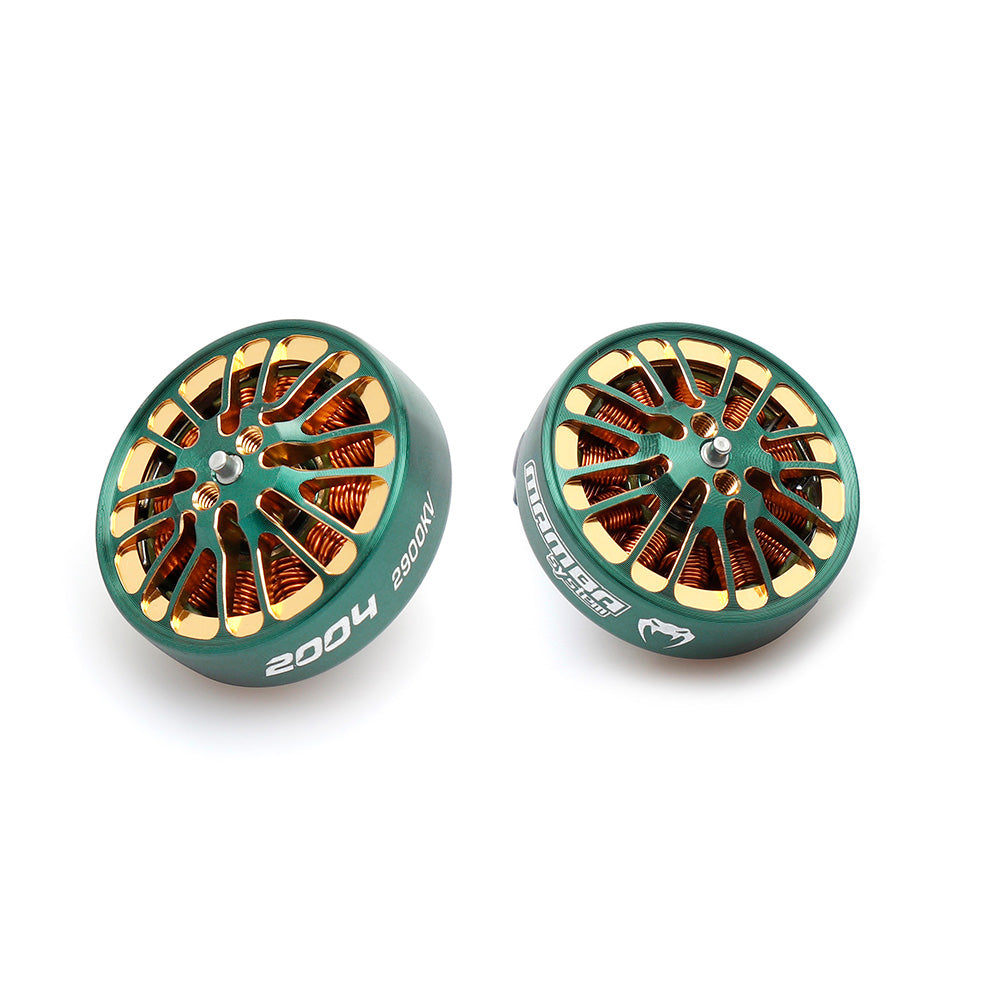

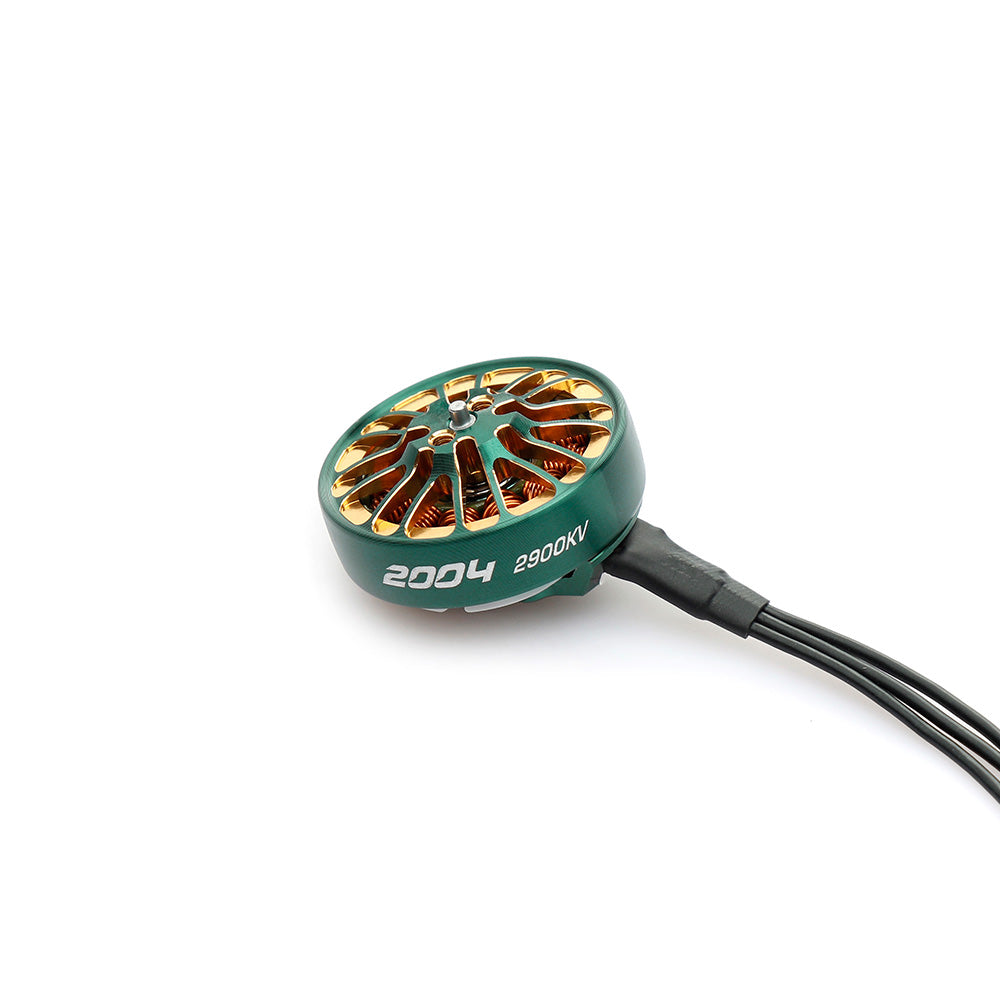

Mamba Toka 2004 2900KV Racing Motor

Overall Dimension:Φ26.2×15.3mm

prop mounting shaft diameter:1.5mm
Installation hole position:12×12mmM2
Prop: 3.5inch~5inch
Bearing7*3*3
Shaft Diameter:3.0mm
Lead Wire Size24AWG×150mm
slots/poles:12N14P
Magnet Wire: 240 Enameled Wire
Stator Diamter20mm
Stator Height:4mm
Rated Voltage:3~4S (12.6V~16.8V)
Peak Current: 31.63A
ldle Current10V/0.9~1.5A
Maximum Power: 418.1W
Internal Resistance90mΩ

Weight: 16.3g

 2004 2900KV motor table
